EVQ-P4003M

Panasonic

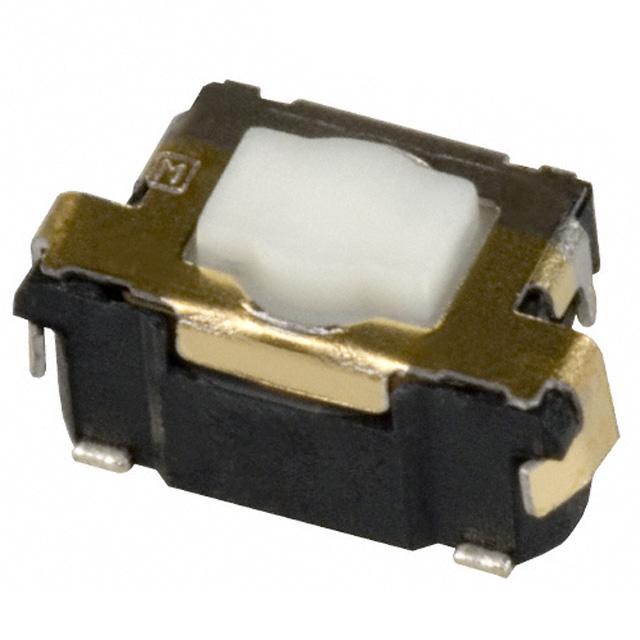

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVQ-P4003M
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	EVQ-P4003M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5551 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5551 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVQ-P4003M

Part Number	EVQ-P4003M	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5551 pcs	Data sheet	EVQ-P4003M.pdf
Termination Style	SMD (SMT) Tab	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	EVQP4
Packaging	Tape & Reel (TR)	Outline	6.20mm x 2.55mm
Other Names	EVQP4003M P12308STR	Operating Temperature	-40°C ~ 85°C
Operating Force	100gf	Mounting Type	Edge Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle	Contact Rating @ Voltage	0.02A @ 15VDC
Circuit	SPST-NO	Actuator Type	Rectangular Button
Actuator Orientation	Side Actuated	Actuator Material	-
Actuator Length, Right Angle	2.10mm	Actuator Height off PCB, Vertical	-
