Panasonic

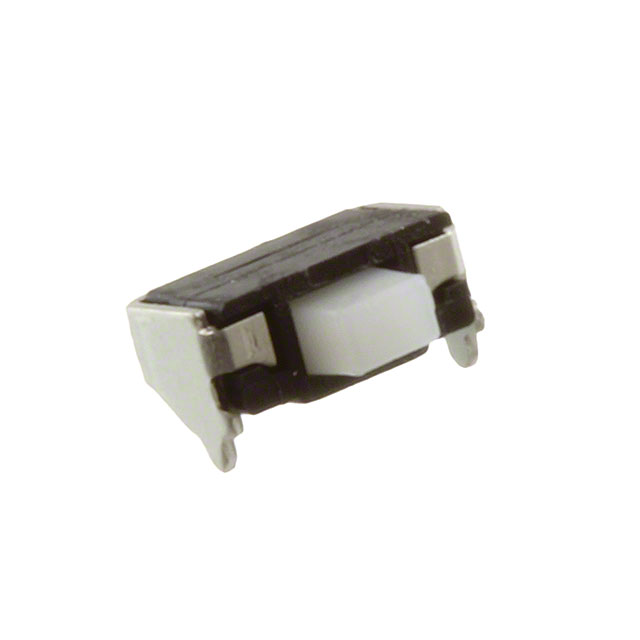

| Part Number | EVP-AKB11A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 281394 pcs | Data sheet | 1.EVP-AKB11A.pdf2.EVP-AKB11A.pdf3.EVP-AKB11A.pdf |
| Termination Style | SMD (SMT) Tab | Switch Travel | 0.12mm |
| Switch Function | Off-Mom | Series | EVPAK |
| Packaging | Tape & Reel (TR) | Outline | 3.90mm x 2.05mm |
| Other Names | EVPAKB11A P17065TR |
Operating Temperature | -40°C ~ 85°C |
| Operating Force | 160gf | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 200,000 Cycles |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Rectangular Button | Actuator Orientation | Side Actuated |
| Actuator Material | - | Actuator Length, Right Angle | 1.50mm |
| Actuator Height off PCB, Vertical | - |
