EVP-AF7B70

Panasonic

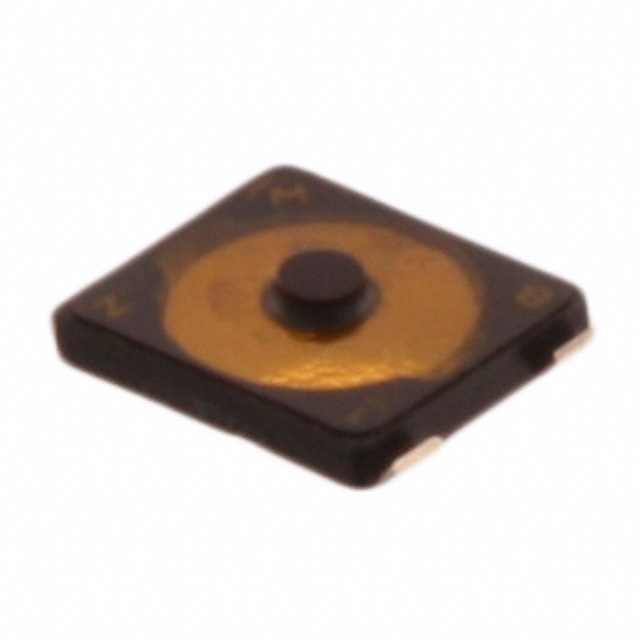

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVP-AF7B70
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	EVP-AF7B70.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	154133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 154133 pcs

Reference Price (In US Dollars)

1 pcs: $0.238

10 pcs: $0.23

25 pcs: $0.226

50 pcs: $0.217

100 pcs: $0.187

250 pcs: $0.17

500 pcs: $0.162

1000 pcs: $0.128

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.238

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVP-AF7B70

Part Number	EVP-AF7B70	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	154133 pcs	Data sheet	EVP-AF7B70.pdf
Termination Style	J Lead	Switch Travel	0.15mm
Switch Function	Off-Mom	Series	EVPAF
Packaging	Original-Reel®	Outline	3.00mm x 2.60mm
Other Names	P15510DKR	Operating Temperature	-40°C ~ 85°C
Operating Force	245gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.02A @ 15VDC	Circuit	SPST-NO
Actuator Type	Standard	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	0.70mm
