ELL-VEG100M

Panasonic

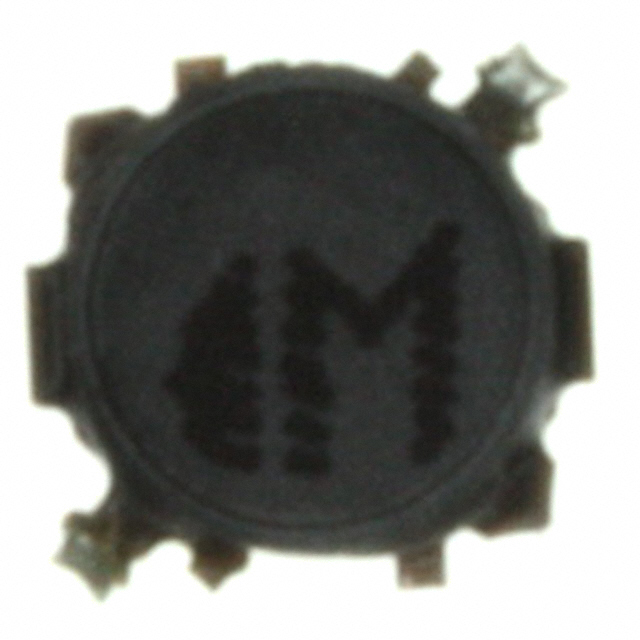

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELL-VEG100M
Manufacturer/Brand:	Panasonic
Product description	FIXED IND 10UH 600MA 480 MOHM
Datasheets:	ELL-VEG100M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	562142 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 562142 pcs

Reference Price (In US Dollars)

2000 pcs: $0.068

4000 pcs: $0.064

6000 pcs: $0.062

10000 pcs: $0.06

50000 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.068

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELL-VEG100M

Part Number	ELL-VEG100M	Manufacturer	Panasonic
Description	FIXED IND 10UH 600MA 480 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	562142 pcs	Data sheet	ELL-VEG100M.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Shielding	Shielded	Series	G
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	ELLVEG100M PCD2281TR	Operating Temperature	-
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	10µH	Height - Seated (Max)	0.039" (1.00mm)
Frequency - Self Resonant	-	Detailed Description	10µH Shielded Wirewound Inductor 600mA 480 mOhm Nonstandard
DC Resistance (DCR)	480 mOhm	Current Rating	600mA
Current - Saturation	520mA
