ELL-SFG100MA

Panasonic

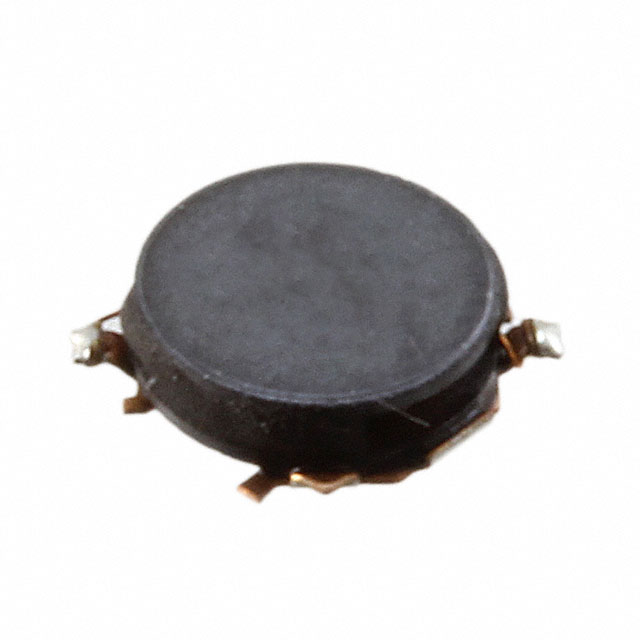

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELL-SFG100MA
Manufacturer/Brand:	Panasonic
Product description	FIXED IND 10UH 800MA 230 MOHM
Datasheets:	ELL-SFG100MA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4425 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4425 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELL-SFG100MA

Part Number	ELL-SFG100MA	Manufacturer	Panasonic
Description	FIXED IND 10UH 800MA 230 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4425 pcs	Data sheet	ELL-SFG100MA.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Shielding	Shielded	Series	G
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	ELLSFG100MA	Operating Temperature	-
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	10µH
Height - Seated (Max)	0.047" (1.20mm)	Frequency - Self Resonant	-
Detailed Description	10µH Shielded Wirewound Inductor 800mA 230 mOhm Nonstandard	DC Resistance (DCR)	230 mOhm
Current Rating	800mA	Current - Saturation	740mA
