ELL-8UV100M

Panasonic

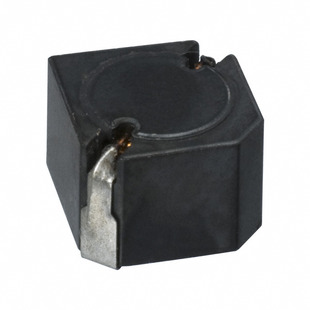

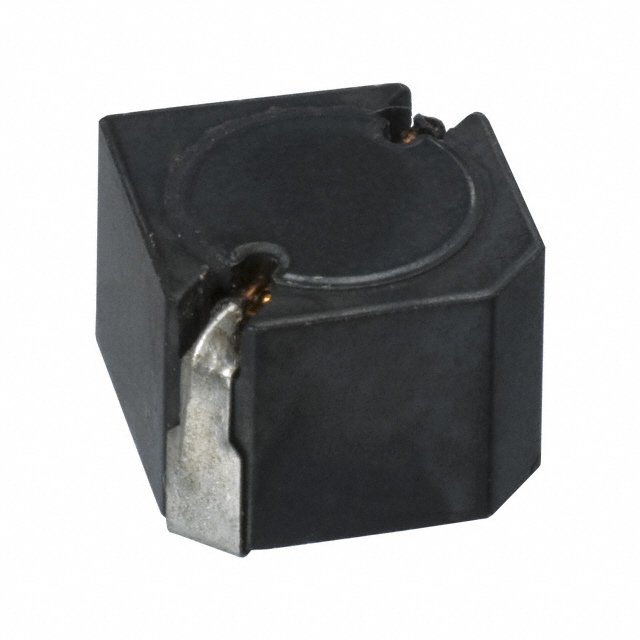

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELL-8UV100M
Manufacturer/Brand:	Panasonic
Product description	FIXED IND 10UH 3MA 22 MOHM SMD
Datasheets:	ELL-8UV100M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66227 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 66227 pcs

Reference Price (In US Dollars)

1 pcs: $0.567

10 pcs: $0.527

100 pcs: $0.381

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.567

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELL-8UV100M

Part Number	ELL-8UV100M	Manufacturer	Panasonic
Description	FIXED IND 10UH 3MA 22 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66227 pcs	Data sheet	ELL-8UV100M.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Shielding	Unshielded	Series	ELL-8UV
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	PCD2136CT	Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Material - Core	Ferrite	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	10µH
Height - Seated (Max)	0.256" (6.50mm)	Frequency - Self Resonant	-
Detailed Description	10µH Unshielded Wirewound Inductor 3mA 22 Ohm Nonstandard	DC Resistance (DCR)	22 Ohm
Current Rating	3mA	Current - Saturation	-
