ELL-4GG8R2N

Panasonic

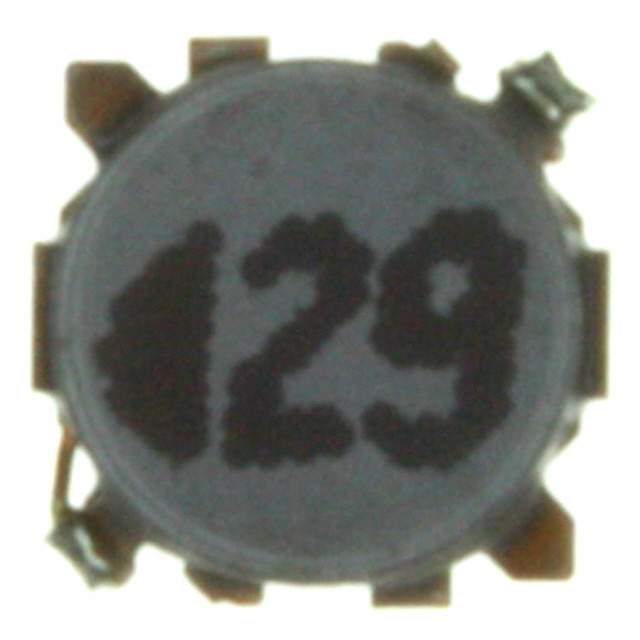

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELL-4GG8R2N
Manufacturer/Brand:	Panasonic
Product description	FIXED IND 8.2UH 870MA 220 MOHM
Datasheets:	ELL-4GG8R2N.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	144244 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 144244 pcs

Reference Price (In US Dollars)

1 pcs: $0.228

10 pcs: $0.198

100 pcs: $0.142

500 pcs: $0.119

1000 pcs: $0.096

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELL-4GG8R2N

Part Number	ELL-4GG8R2N	Manufacturer	Panasonic
Description	FIXED IND 8.2UH 870MA 220 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	144244 pcs	Data sheet	ELL-4GG8R2N.pdf
Type	Wirewound	Tolerance	±30%
Supplier Device Package	-	Size / Dimension	0.150" L x 0.150" W (3.80mm x 3.80mm)
Shielding	Shielded	Series	G
Ratings	-	Q @ Freq	-
Packaging	Original-Reel®	Package / Case	Nonstandard
Other Names	PCD2205DKR	Operating Temperature	-
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	8.2µH	Height - Seated (Max)	0.055" (1.40mm)
Frequency - Self Resonant	-	Detailed Description	8.2µH Shielded Wirewound Inductor 870mA 220 mOhm Nonstandard
DC Resistance (DCR)	220 mOhm	Current Rating	870mA
Current - Saturation	1A
