ELF-18D656D

Panasonic

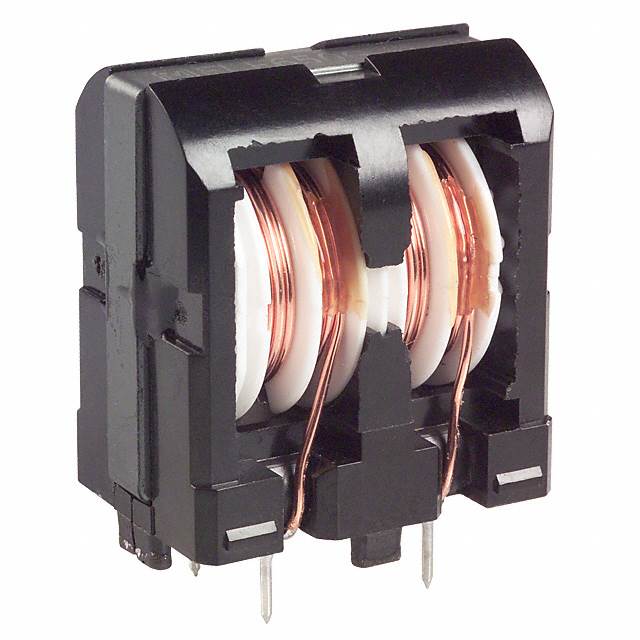

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELF-18D656D
Manufacturer/Brand:	Panasonic
Product description	COMMON MODE CHOKE 1.3A 2LN TH
Datasheets:	ELF-18D656D.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	24269 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24269 pcs

Reference Price (In US Dollars)

1 pcs: $1.575

10 pcs: $1.332

25 pcs: $1.142

50 pcs: $1.114

100 pcs: $1.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.575

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELF-18D656D

Part Number	ELF-18D656D	Manufacturer	Panasonic
Description	COMMON MODE CHOKE 1.3A 2LN TH	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	24269 pcs	Data sheet	ELF-18D656D.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.142" L x 0.827" W (29.00mm x 21.00mm)	Series	V
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	ELF18D656D PLK1226
Operating Temperature	-20°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Height (Max)	1.362" (34.60mm)
Filter Type	Power Line	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 1.3A	DC Resistance (DCR) (Max)	-
Current Rating (Max)	1.3A	Approvals	-
