ELF-18D270D

Panasonic

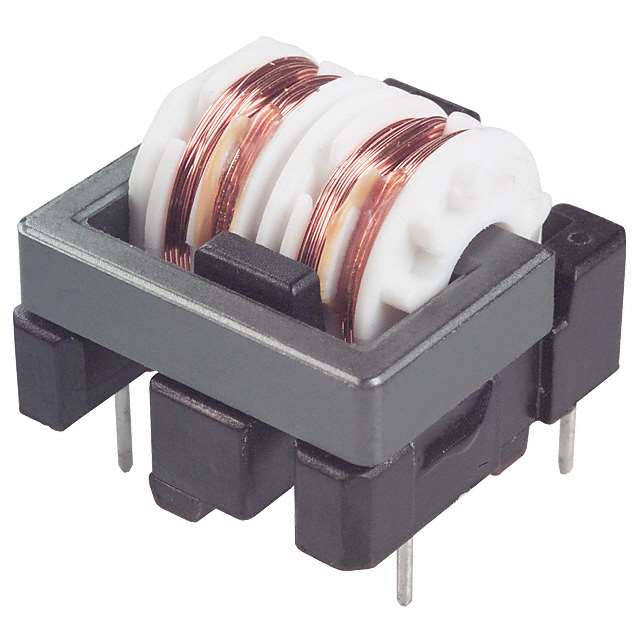

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELF-18D270D
Manufacturer/Brand:	Panasonic
Product description	COMMON MODE CHOKE 1.1A 2LN TH
Datasheets:	1.ELF-18D270D.pdf 2.ELF-18D270D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6176 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6176 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELF-18D270D

Part Number	ELF-18D270D	Manufacturer	Panasonic
Description	COMMON MODE CHOKE 1.1A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6176 pcs	Data sheet	1.ELF-18D270D.pdf 2.ELF-18D270D.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.787" L x 0.827" W (20.00mm x 21.00mm)	Series	H
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	ELF18D270D PLK1256
Operating Temperature	-	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	0.787" (20.00mm)
Filter Type	-	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 1.1A DCR 248 mOhm (Typ)	DC Resistance (DCR) (Max)	248 mOhm (Typ)
Current Rating (Max)	1.1A	Approvals	-
