ELF-15N002A

Panasonic

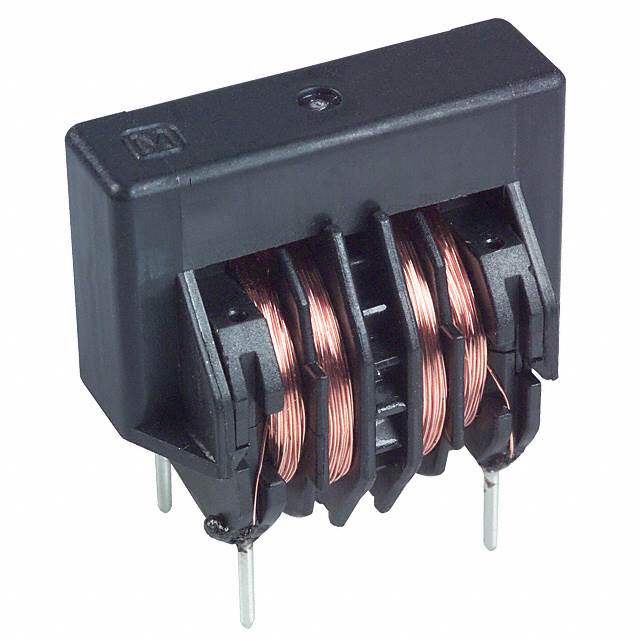

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELF-15N002A
Manufacturer/Brand:	Panasonic
Product description	COMMON MODE CHOKE 200MA 2LN TH
Datasheets:	ELF-15N002A.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6484 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6484 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELF-15N002A

Part Number	ELF-15N002A	Manufacturer	Panasonic
Description	COMMON MODE CHOKE 200MA 2LN TH	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6484 pcs	Data sheet	ELF-15N002A.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.591" L x 0.894" W (15.00mm x 22.70mm)	Series	N
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	ELF15N002A PLK1064
Operating Temperature	-	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Height (Max)	0.886" (22.50mm)
Filter Type	-	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 200mA DCR 7.543 Ohm (Typ)	DC Resistance (DCR) (Max)	7.543 Ohm (Typ)
Current Rating (Max)	200mA	Approvals	-
