EHF-FD1812D

Panasonic

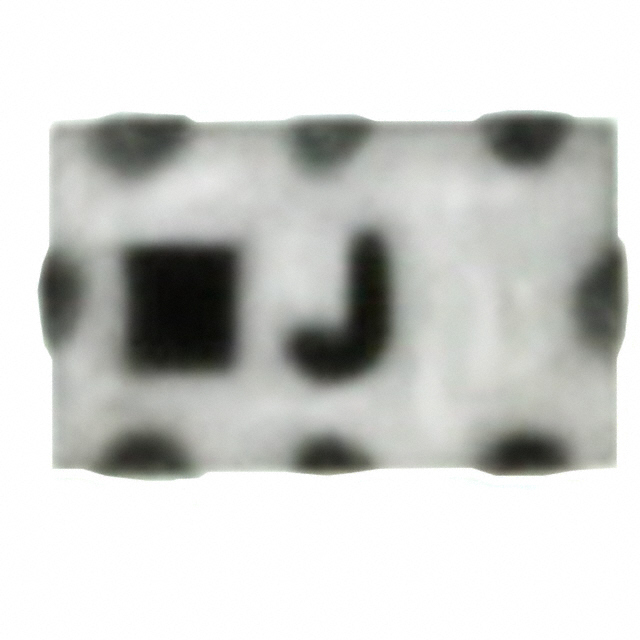

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EHF-FD1812D
Manufacturer/Brand:	Panasonic
Product description	RF DIR COUPLER 880-915MHZ 0805
Datasheets:	EHF-FD1812D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5665 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5665 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EHF-FD1812D

Part Number	EHF-FD1812D	Manufacturer	Panasonic
Description	RF DIR COUPLER 880-915MHZ 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5665 pcs	Data sheet	EHF-FD1812D.pdf
Supplier Device Package	0805 (2012 Metric)	Series	-
Return Loss	-	Power - Max	3.2W, 1.5W
Packaging	Tape & Reel (TR)	Package / Case	0805 (2012 Metric)
Other Names	EHFFD1812D P12049TR	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	24dB, 17dB
Insertion Loss	0.35dB, 0.45dB	Frequency	880MHz ~ 915MHz, 1.71GHz ~ 1.785GHz
Detailed Description	RF Directional Coupler Cellular 880MHz ~ 915MHz, 1.71GHz ~ 1.785GHz 19dB, 14dB 3.2W, 1.5W 0805 (2012 Metric)	Coupling Factor	19dB, 14dB
Coupler Type	Dual Band, Dual Path	Applications	Cellular
