EHD-RD3323

Panasonic

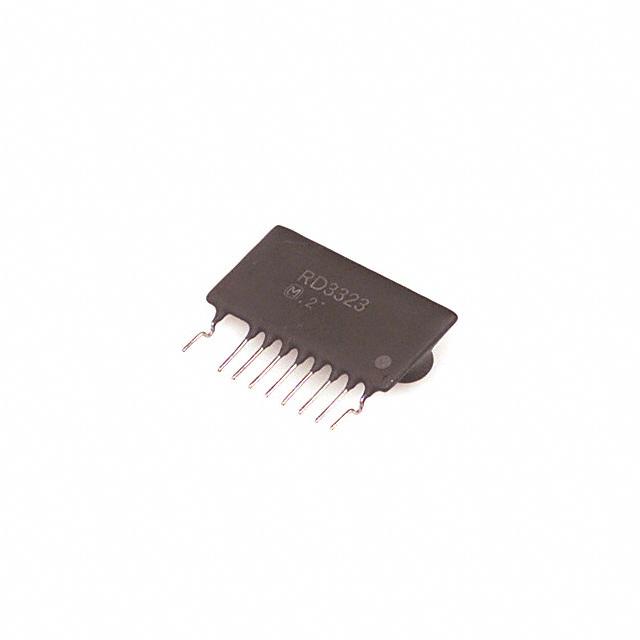

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EHD-RD3323
Manufacturer/Brand:	Panasonic
Product description	DC DC CONVERTER 12V 1W
Datasheets:	EHD-RD3323.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4705 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4705 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EHD-RD3323

Part Number	EHD-RD3323	Manufacturer	Panasonic
Description	DC DC CONVERTER 12V 1W	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4705 pcs	Data sheet	EHD-RD3323.pdf
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	12V	Voltage - Input (Min)	90V
Voltage - Input (Max)	170V	Type	Non-Isolated PoL Module
Size / Dimension	1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)	Series	EHD-RD
Power (Watts)	1W	Packaging	Tray
Package / Case	10-SIP Module, 9 Leads	Other Names	EHDRD3323 P11456
Operating Temperature	-25°C ~ 85°C	Number of Outputs	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Features	-
Efficiency	70%	Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 12V 100mA 90V - 170V Input
Current - Output (Max)	100mA	Applications	ITE (Commercial)
