EEV-TG1H681UM

Panasonic

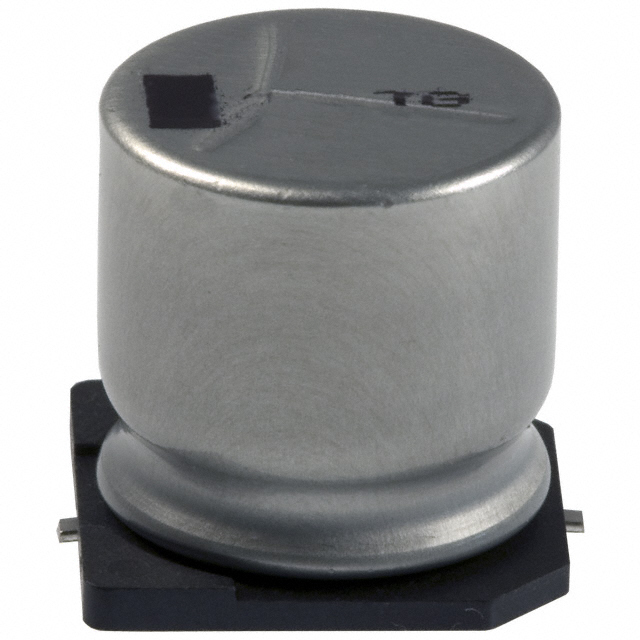

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EEV-TG1H681UM
Manufacturer/Brand:	Panasonic
Product description	CAP ALUM 680UF 20% 50V SMD
Datasheets:	EEV-TG1H681UM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66349 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 66349 pcs

Reference Price (In US Dollars)

125 pcs: $0.517

250 pcs: $0.443

625 pcs: $0.394

875 pcs: $0.369

1250 pcs: $0.345

3125 pcs: $0.332

6250 pcs: $0.32

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.517

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EEV-TG1H681UM

Part Number	EEV-TG1H681UM	Manufacturer	Panasonic
Description	CAP ALUM 680UF 20% 50V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66349 pcs	Data sheet	EEV-TG1H681UM.pdf
Voltage - Rated	50V	Tolerance	±20%
Surface Mount Land Size	0.669" L x 0.669" W (17.00mm x 17.00mm)	Size / Dimension	0.630" Dia (16.00mm)
Series	TG	Ripple Current @ Low Frequency	585mA @ 120Hz
Ripple Current @ High Frequency	900mA @ 100kHz	Ratings	AEC-Q200
Polarization	Polar	Packaging	Tape & Reel (TR)
Package / Case	Radial, Can - SMD	Other Names	EEVTG1H681UM PCE3656TR
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Lifetime @ Temp.	2000 Hrs @ 125°C	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.650" (16.50mm)
ESR (Equivalent Series Resistance)	150 mOhm @ 100kHz	Detailed Description	680µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 150 mOhm @ 100kHz 2000 Hrs @ 125°C
Capacitance	680µF	Applications	Automotive
