Panasonic
| Part Number | ECO-S1CP472BA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 4700UF 20% 16V SNAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44263 pcs | Data sheet | ECO-S1CP472BA.pdf |
| Voltage - Rated | 16V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.866" Dia (22.00mm) |
| Series | TS-UP | Ripple Current @ Low Frequency | 1.77A @ 120Hz |
| Ripple Current @ High Frequency | 2.036A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Bulk |
| Package / Case | Radial, Can - Snap-In | Other Names | ECOS1CP472BA P7345 P7345-ND P7600 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Lead Spacing | 0.394" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.063" (27.00mm) | ESR (Equivalent Series Resistance) | 159 mOhm @ 120Hz |

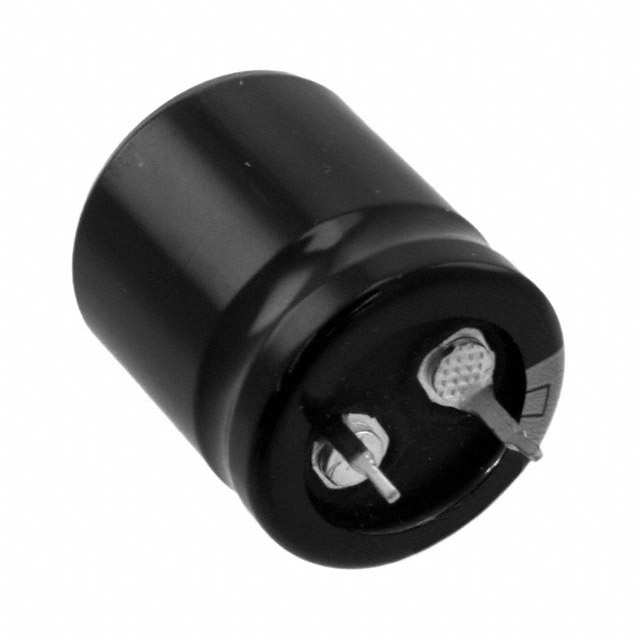

| Detailed Description | 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 159 mOhm @ 120Hz 3000 Hrs @ 85°C | Capacitance | 4700µF |
| Applications | General Purpose |
