DSC5A01R0L

Panasonic

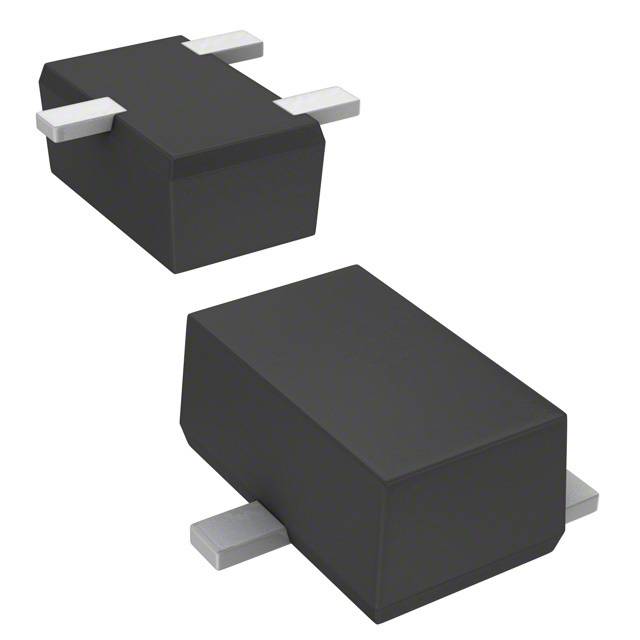

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DSC5A01R0L
Manufacturer/Brand:	Panasonic
Product description	TRANS NPN 40V 0.05A SMINI3
Datasheets:	DSC5A01R0L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	755768 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 755768 pcs

Reference Price (In US Dollars)

3000 pcs: $0.05

6000 pcs: $0.047

15000 pcs: $0.044

30000 pcs: $0.04

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.05

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DSC5A01R0L

Part Number	DSC5A01R0L	Manufacturer	Panasonic
Description	TRANS NPN 40V 0.05A SMINI3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	755768 pcs	Data sheet	DSC5A01R0L.pdf
Voltage - Collector Emitter Breakdown (Max)	40V	Vce Saturation (Max) @ Ib, Ic	200mV @ 1mA, 10mA
Transistor Type	NPN	Supplier Device Package	SMini3-F2-B
Series	-	Power - Max	150mW
Packaging	Tape & Reel (TR)	Package / Case	SC-85
Other Names	DSC5A01R0L-ND DSC5A01R0LTR	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	150MHz	Detailed Description	Bipolar (BJT) Transistor NPN 40V 50mA 150MHz 150mW Surface Mount SMini3-F2-B
DC Current Gain (hFE) (Min) @ Ic, Vce	400 @ 2mA, 10V	Current - Collector Cutoff (Max)	1µA
Current - Collector (Ic) (Max)	50mA	Base Part Number	DSC5A01
