DMG504010R

Panasonic

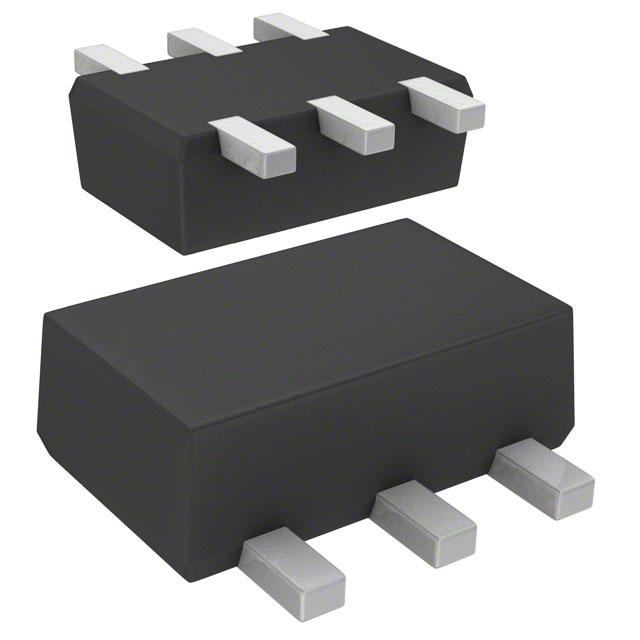

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DMG504010R
Manufacturer/Brand:	Panasonic
Product description	TRANS NPN/PNP 50V 0.1A SMINI6
Datasheets:	DMG504010R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	986843 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 986843 pcs

Reference Price (In US Dollars)

3000 pcs: $0.039

6000 pcs: $0.037

15000 pcs: $0.034

30000 pcs: $0.032

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.039

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DMG504010R

Part Number	DMG504010R	Manufacturer	Panasonic
Description	TRANS NPN/PNP 50V 0.1A SMINI6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	986843 pcs	Data sheet	DMG504010R.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	300mV @ 10mA, 100mA / 500mV @ 10mA, 100mA
Transistor Type	NPN, PNP	Supplier Device Package	SMini6-F3-B
Series	-	Power - Max	150mW
Packaging	Tape & Reel (TR)	Package / Case	6-SMD, Flat Leads
Other Names	DMG504010RTR	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	150MHz	Detailed Description	Bipolar (BJT) Transistor Array NPN, PNP 50V 100mA 150MHz 150mW Surface Mount SMini6-F3-B
DC Current Gain (hFE) (Min) @ Ic, Vce	210 @ 2mA, 10V	Current - Collector Cutoff (Max)	100µA
Current - Collector (Ic) (Max)	100mA	Base Part Number	DMG50401
