DB5S406K0R

Panasonic

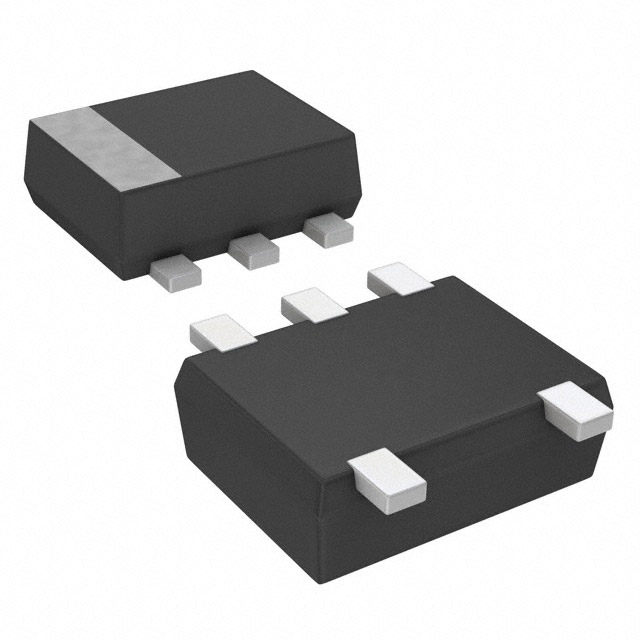

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB5S406K0R
Manufacturer/Brand:	Panasonic
Product description	DIODE ARRAY SCHOTTKY 45V SSMINI5
Datasheets:	DB5S406K0R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1089894 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1089894 pcs

Reference Price (In US Dollars)

8000 pcs: $0.036

16000 pcs: $0.033

24000 pcs: $0.031

56000 pcs: $0.028

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.036

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB5S406K0R

Part Number	DB5S406K0R	Manufacturer	Panasonic
Description	DIODE ARRAY SCHOTTKY 45V SSMINI5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1089894 pcs	Data sheet	DB5S406K0R.pdf
Voltage - Forward (Vf) (Max) @ If	600mV @ 100mA	Voltage - DC Reverse (Vr) (Max)	45V
Supplier Device Package	SSMini5-F4-B	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	900ps
Packaging	Tape & Reel (TR)	Package / Case	SOT-665
Other Names	DB5S406K0R-ND DB5S406K0RTR	Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	2 Independent
Detailed Description	Diode Array 2 Independent Schottky 45V 100mA Surface Mount SOT-665	Current - Reverse Leakage @ Vr	5µA @ 40V
Current - Average Rectified (Io) (per Diode)	100mA	Base Part Number	DB5S406
