CP1SA-12V-X

Panasonic

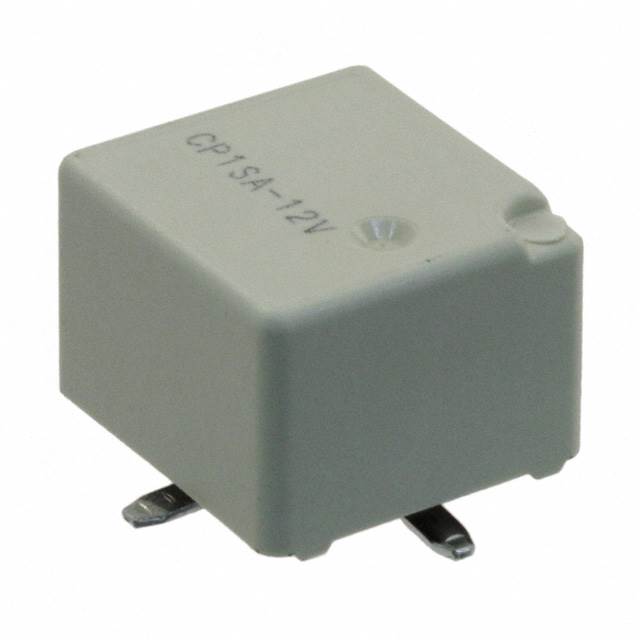

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CP1SA-12V-X
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDT 20A 12V
Datasheets:	CP1SA-12V-X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40986 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40986 pcs

Reference Price (In US Dollars)

300 pcs: $0.936

600 pcs: $0.878

1500 pcs: $0.819

3000 pcs: $0.805

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CP1SA-12V-X

Part Number	CP1SA-12V-X	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDT 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40986 pcs	Data sheet	CP1SA-12V-X.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	Gull Wing	Switching Voltage	14VDC - Nom
Series	CP	Release Time	10ms
Packaging	Tape & Reel (TR)	Other Names	255-3093-2 CP1SA-12V-X-ND CP1SA12VX
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Contact Rating (Current)	20A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	225 Ohms	Coil Power	640 mW
Coil Current	53.3mA
