CB1F-12V

Panasonic

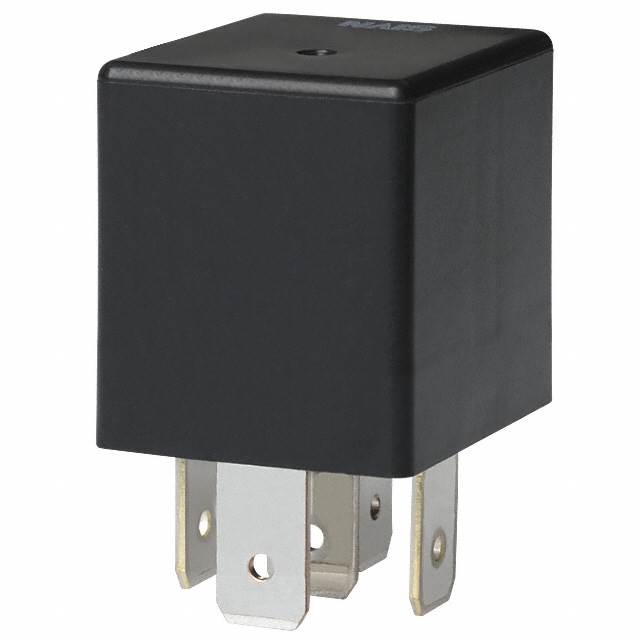

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CB1F-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDT 40A 12V
Datasheets:	CB1F-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19138 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19138 pcs

Reference Price (In US Dollars)

1 pcs: $1.943

10 pcs: $1.821

25 pcs: $1.618

50 pcs: $1.537

100 pcs: $1.457

250 pcs: $1.295

500 pcs: $1.214

1000 pcs: $1.133

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.943

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CB1F-12V

Part Number	CB1F-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDT 40A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19138 pcs	Data sheet	CB1F-12V.pdf
Turn On Voltage (Max)	7 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	Plug In, Quick Connect - 0.250" (6.3mm)	Switching Voltage	14VDC - Nom
Series	CB	Release Time	15ms
Packaging	Bulk	Other Names	255-2179 CB1F-12V-ND CB1F12V
Operating Temperature	-40°C ~ 85°C	Operate Time	15ms
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Flux Protection	Contact Rating (Current)	40A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	103 Ohms	Coil Power	1.4 W
Coil Current	117mA
