CA1-DC12V-N

Panasonic

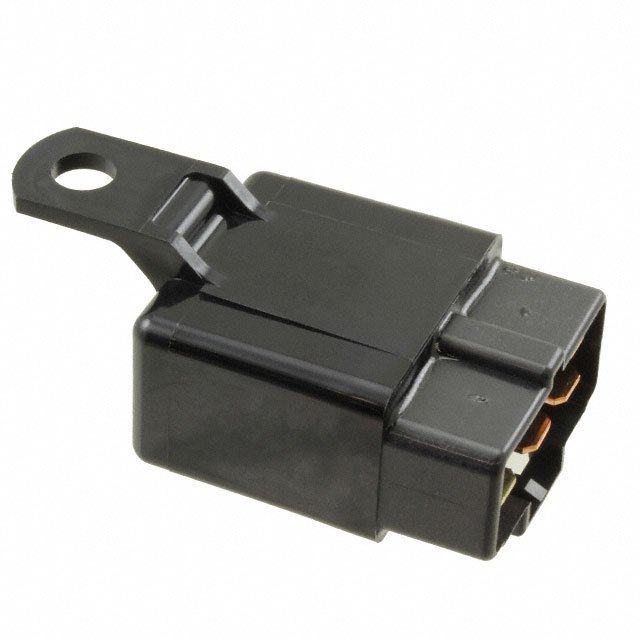

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CA1-DC12V-N
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDT 20A 12V
Datasheets:	CA1-DC12V-N.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15953 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15953 pcs

Reference Price (In US Dollars)

1 pcs: $2.435

20 pcs: $2.284

40 pcs: $2.03

60 pcs: $1.929

100 pcs: $1.827

260 pcs: $1.624

500 pcs: $1.523

1000 pcs: $1.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.435

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CA1-DC12V-N

Part Number	CA1-DC12V-N	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDT 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15953 pcs	Data sheet	CA1-DC12V-N.pdf
Turn On Voltage (Max)	8 VDC	Turn Off Voltage (Min)	0.6 VDC
Termination Style	Plug In	Switching Voltage	15VDC - Max
Series	CA	Release Time	10ms
Packaging	Tray	Other Names	255-2725 CA1-DC12V-N-ND CA1DC12VN
Operating Temperature	-30°C ~ 80°C	Operate Time	10ms
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Contact Rating (Current)	20A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	80 Ohms	Coil Power	1.8 W
Coil Current	150mA
