AZ35269

PanasonicPanasonic

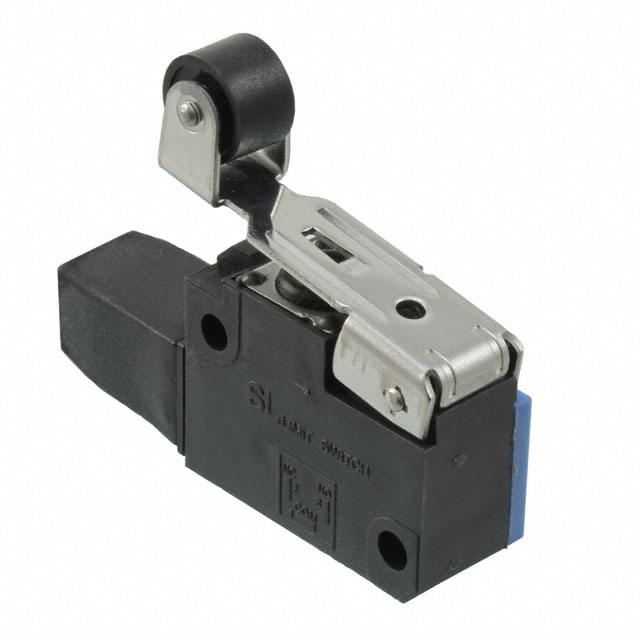

AZ35269 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AZ35269
Manufacturer/Brand: Panasonic
Product description SWITCH SNAP ACTION SPDT 4A 125V
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 6573 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 6573 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AZ35269

Part Number AZ35269 Manufacturer Panasonic
Description SWITCH SNAP ACTION SPDT 4A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6573 pcs Data sheet
Voltage Rating - DC 30V Voltage Rating - AC 125V
Termination Style Solder, Quick Connect - 0.110" (2.8mm) Switch Function On-Mom
Series AZ3 Release Force 60gf
Pretravel 0.080" (2.0mm) Packaging Bulk
Overtravel 0.138" (3.5mm) Other Names 1110-3354
Operating Temperature -20°C ~ 60°C Operating Position 1.091" (27.7mm)
Operating Force 300gf Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 10,000,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection IP60 - Dust Tight
Features Terminal Cover Electrical Life 100,000 Cycles
Differential Travel 0.040" (1.0mm) Current Rating 4A (AC/DC)
Circuit SPDT Actuator Type Lever, Roller
