AYF532435A

Panasonic

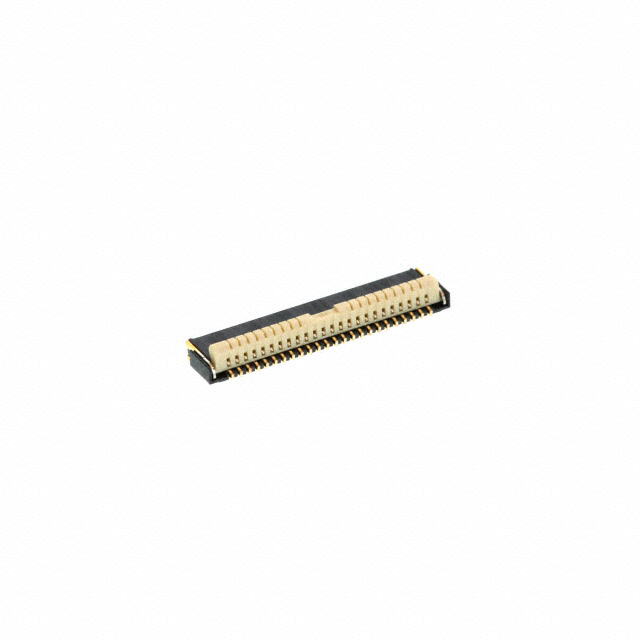

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AYF532435A
Manufacturer/Brand:	Panasonic
Product description	CONN FFC FPC 24POS 0.50MM R/A
Datasheets:	AYF532435A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35363 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35363 pcs

Reference Price (In US Dollars)

1 pcs: $0.896

10 pcs: $0.814

25 pcs: $0.764

50 pcs: $0.731

100 pcs: $0.698

250 pcs: $0.631

500 pcs: $0.582

1000 pcs: $0.499

2500 pcs: $0.465

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.896

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AYF532435A

Part Number	AYF532435A	Manufacturer	Panasonic
Description	CONN FFC FPC 24POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35363 pcs	Data sheet	AYF532435A.pdf
Voltage Rating	50V	Termination	Solder
Series	Y5B	Pitch	0.020" (0.50mm)
Packaging	Strip	Other Names	255-5675 AYF532435A-ND
Operating Temperature	-55°C ~ 85°C	Number of Positions	24
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.039" (1.00mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	24 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A per Contact	Contact Material	Copper Alloy
Contact Finish Thickness	Flash	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Tapered
Actuator Material	Liquid Crystal Polymer (LCP)	Actuator Color	-
