Panasonic
| Part Number | AYF531435A | Manufacturer | Panasonic |
|---|---|---|---|

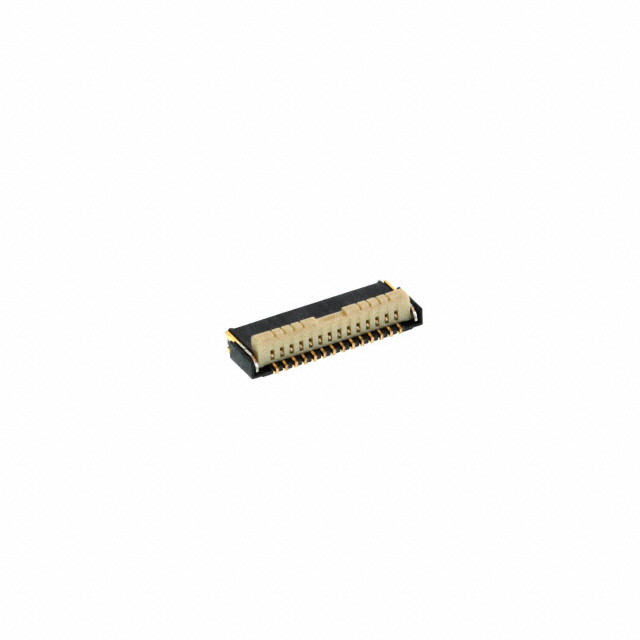

| Description | CONN FFC/FPC 14POS 0.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44566 pcs | Data sheet | AYF531435A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Y5B | Pitch | 0.020" (0.50mm) |
| Packaging | Bulk | Other Names | 255-5671 AYF531435A-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 14 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | - | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 14 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | - |
