AYF512415

Panasonic

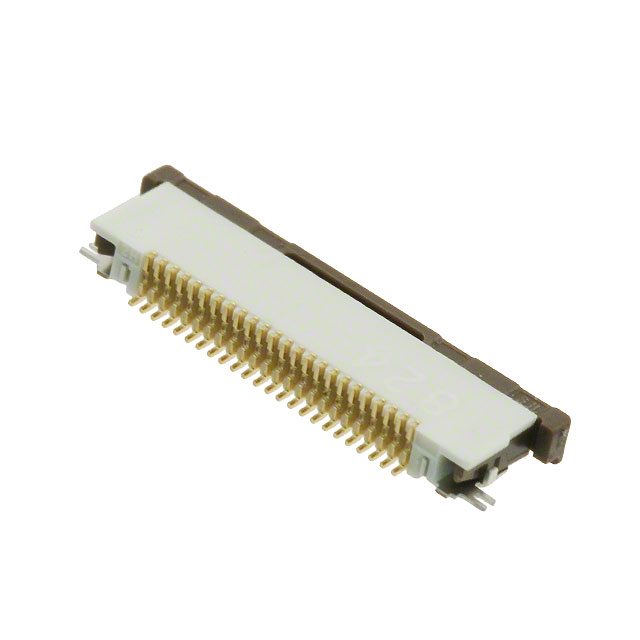

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AYF512415
Manufacturer/Brand:	Panasonic
Product description	CONN FPC BOTTOM 24POS 0.50MM R/A
Datasheets:	AYF512415.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2986 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2986 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AYF512415

Part Number	AYF512415	Manufacturer	Panasonic
Description	CONN FPC BOTTOM 24POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2986 pcs	Data sheet	AYF512415.pdf
Voltage Rating	50V	Termination	Solder
Series	Y5S	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	255-3063-6
Operating Temperature	-55°C ~ 85°C	Number of Positions	24
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	-
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Housing Color	-
Height Above Board	0.075" (1.90mm)	Flat Flex Type	FPC
Features	Solder Retention	FFC, FCB Thickness	0.30mm
Detailed Description	24 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A per Contact
Contact Material	Copper Alloy	Contact Finish Thickness	Flash
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
