Panasonic

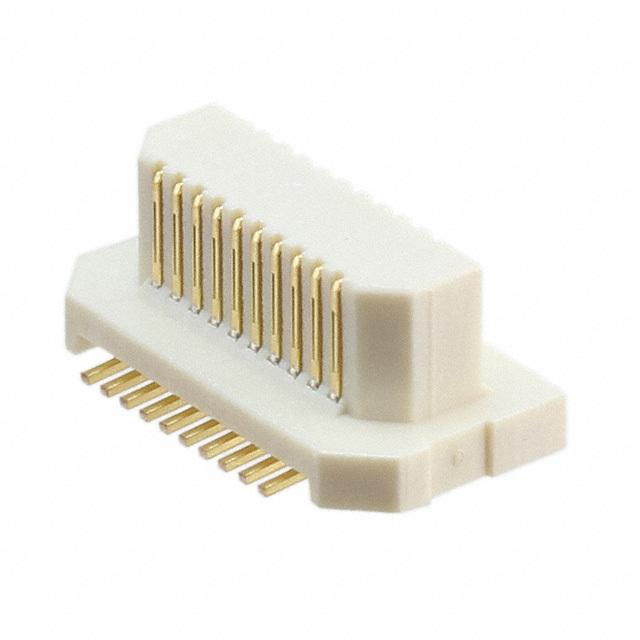

| Part Number | AXK6S20447M3 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | HEADER 20POS AU .020" SMD | Lead Free Status / RoHS Status | |
| Quantity Available | 10024 pcs | Data sheet | AXK6S20447M3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | V | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 255-6447-1 |
| Operating Temperature | 0°C ~ 70°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 2 Weeks | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.020" (0.50mm) |
| Current Rating | - | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
