AXG224224A

Panasonic

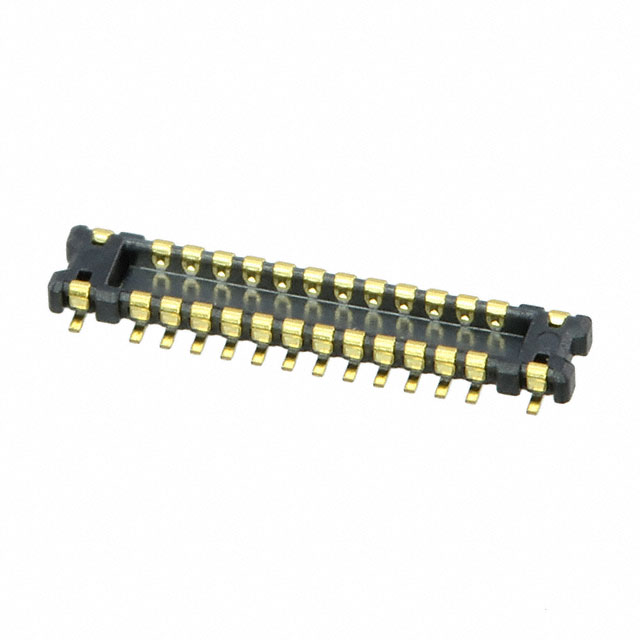

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AXG224224A
Manufacturer/Brand:	Panasonic
Product description	CONN HDR 24POS 0.35MM SMD GOLD
Datasheets:	AXG224224A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31521 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31521 pcs

Reference Price (In US Dollars)

1 pcs: $1.228

10 pcs: $1.179

25 pcs: $1.081

50 pcs: $1.032

100 pcs: $0.983

250 pcs: $0.86

500 pcs: $0.835

1000 pcs: $0.712

2500 pcs: $0.663

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AXG224224A

Part Number	AXG224224A	Manufacturer	Panasonic
Description	CONN HDR 24POS 0.35MM SMD GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31521 pcs	Data sheet	AXG224224A.pdf
Series	S35	Pitch	0.014" (0.35mm)
Packaging	Strip	Other Names	255-5546 AXG224224A-ND
Number of Rows	2	Number of Positions	24
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	0.8mm	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.026" (0.65mm)
Features	Solder Retention	Detailed Description	24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Header, Outer Shroud Contacts
