AVL3825613

Panasonic

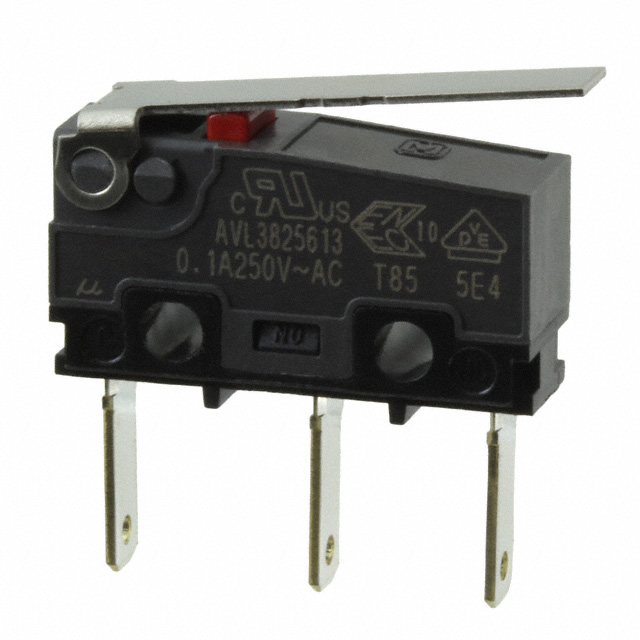

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AVL3825613
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	AVL3825613.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30416 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 30416 pcs

Reference Price (In US Dollars)

1 pcs: $1.051

10 pcs: $0.971

25 pcs: $0.91

50 pcs: $0.89

100 pcs: $0.708

250 pcs: $0.668

500 pcs: $0.627

1000 pcs: $0.587

5000 pcs: $0.546

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.051

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AVL3825613

Part Number	AVL3825613	Manufacturer	Panasonic
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30416 pcs	Data sheet	AVL3825613.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	AVL3	Release Force	3.500gf
Pretravel	0.110" (2.8mm)	Packaging	Bulk
Overtravel	0.047" (1.2mm)	Other Names	255-5503 AVL3825613-ND Q6169774
Operating Temperature	-25°C ~ 85°C	Operating Position	0.345" (8.8mm)
Operating Force	55gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.032" (0.81mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Straight
