AV4024

Panasonic

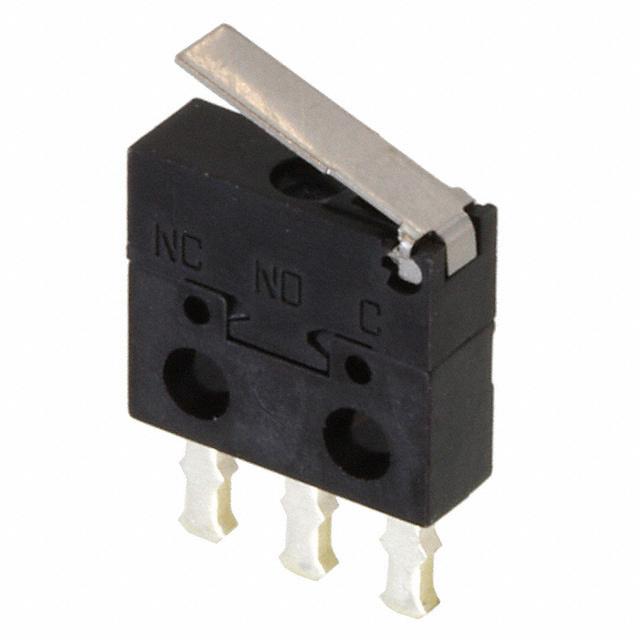

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AV4024
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 500MA
Datasheets:	AV4024.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40079 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40079 pcs

Reference Price (In US Dollars)

1 pcs: $0.816

10 pcs: $0.754

25 pcs: $0.707

50 pcs: $0.691

100 pcs: $0.55

250 pcs: $0.519

500 pcs: $0.487

1000 pcs: $0.456

5000 pcs: $0.424

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.816

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AV4024

Part Number	AV4024	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 500MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40079 pcs	Data sheet	AV4024.pdf
Voltage Rating - DC	30V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	AV4
Release Force	-	Pretravel	0.094" (2.4mm)
Packaging	Bulk	Overtravel	0.015" (0.4mm)
Other Names	255-3747 AV4024-ND	Operating Temperature	-25°C ~ 80°C
Operating Position	0.250" (6.4mm)	Operating Force	25gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	300,000 Cycles	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	20,000 Cycles
Differential Travel	0.027" (0.7mm)	Current Rating	500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
