APV1122

Panasonic

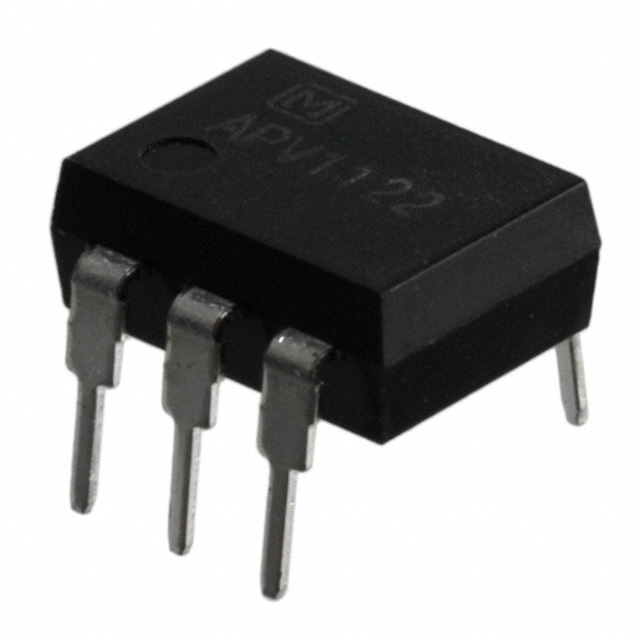

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APV1122
Manufacturer/Brand:	Panasonic
Product description	OPTOISO 5KV PHOTOVOLTAIC 6-DIP
Datasheets:	1.APV1122.pdf 2.APV1122.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26136 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 26136 pcs

Reference Price (In US Dollars)

1 pcs: $1.412

10 pcs: $1.176

50 pcs: $0.988

100 pcs: $0.847

250 pcs: $0.753

500 pcs: $0.682

1000 pcs: $0.626

2500 pcs: $0.60

5000 pcs: $0.583

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.412

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APV1122

Part Number	APV1122	Manufacturer	Panasonic
Description	OPTOISO 5KV PHOTOVOLTAIC 6-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26136 pcs	Data sheet	1.APV1122.pdf 2.APV1122.pdf
Voltage - Output (Max)	8.7V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	400µs, 100µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Photovoltaic	Other Names	255-2657
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Photovoltaic Output 5000Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	-	Current Transfer Ratio (Max)	-
Current - Output / Channel	14µA	Current - DC Forward (If) (Max)	50mA
