AN8495SB-E1V

Panasonic

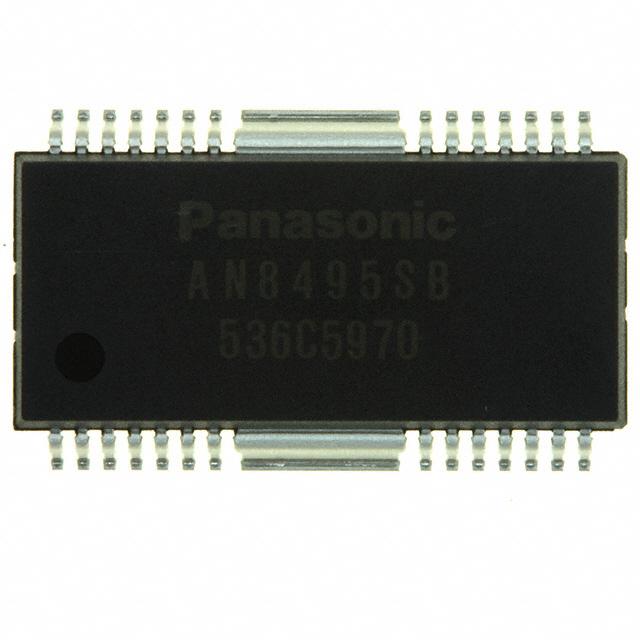

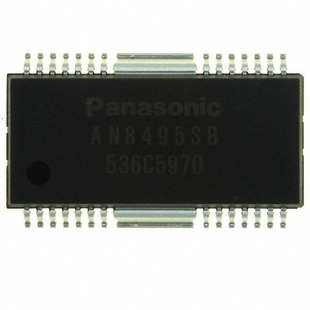

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN8495SB-E1V
Manufacturer/Brand:	Panasonic
Product description	IC MOTOR DRIVER PAR 42HSOP
Datasheets:	AN8495SB-E1V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17468 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17468 pcs

Reference Price (In US Dollars)

1 pcs: $2.131

10 pcs: $1.904

25 pcs: $1.714

100 pcs: $1.561

250 pcs: $1.409

500 pcs: $1.264

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.131

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN8495SB-E1V

Part Number	AN8495SB-E1V	Manufacturer	Panasonic
Description	IC MOTOR DRIVER PAR 42HSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17468 pcs	Data sheet	AN8495SB-E1V.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Voltage - Load	18 V ~ 28 V
Technology	Power MOSFET	Supplier Device Package	28-HSOP
Step Resolution	1, 1/2, 1/4	Series	-
Packaging	Cut Tape (CT)	Package / Case	28-BSOP (0.327", 8.30mm Width) + 2 Heat Tabs
Output Configuration	Half Bridge (4)	Other Names	AN8495SBE1CT AN8495SBE1CT-ND AN8495SBE1V AN8495SBE1VCT
Operating Temperature	-	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Bipolar Motor Driver Power MOSFET Parallel 28-HSOP	Current - Output	1.5A
Base Part Number	AN8495SB	Applications	General Purpose
