AN48840B-NL

Panasonic

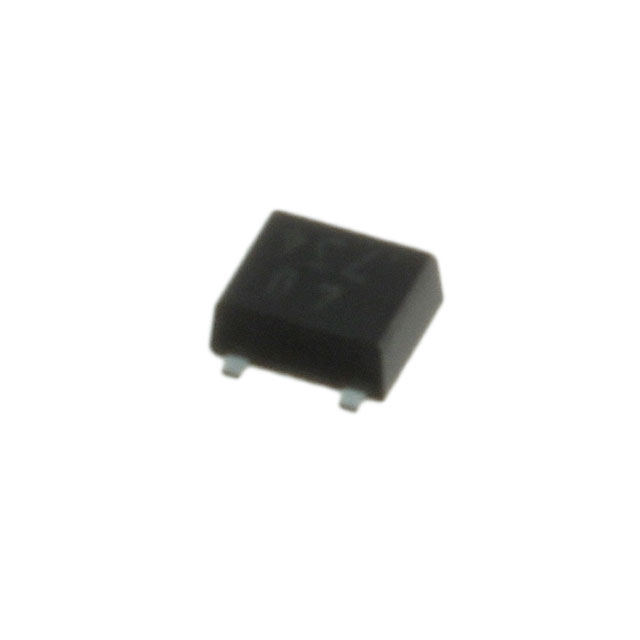

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN48840B-NL
Manufacturer/Brand:	Panasonic
Product description	MAGNET SWITCH BIPOLAR SMINI-5DA
Datasheets:	AN48840B-NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50378 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 50378 pcs

Reference Price (In US Dollars)

1 pcs: $0.69

5 pcs: $0.652

10 pcs: $0.559

25 pcs: $0.447

50 pcs: $0.41

100 pcs: $0.373

500 pcs: $0.326

1000 pcs: $0.289

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.69

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN48840B-NL

Part Number	AN48840B-NL	Manufacturer	Panasonic
Description	MAGNET SWITCH BIPOLAR SMINI-5DA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50378 pcs	Data sheet	AN48840B-NL.pdf
Voltage - Supply	2.5 V ~ 3.5 V	Test Condition	25°C
Technology	Hall Effect	Supplier Device Package	SMINI-5DA
Series	-	Sensing Range	8mT Trip, -8mT Release
Polarization	South Pole	Packaging	Original-Reel®
Package / Case	6-SMD (5 Leads), Flat Lead	Output Type	Push-Pull
Other Names	AN48840B-NLDKR	Operating Temperature	-25°C ~ 75°C (TA)
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Bipolar Switch	Features	-
Detailed Description	Digital Switch Bipolar Switch Push-Pull Hall Effect SMINI-5DA	Current - Supply (Max)	85µA
Current - Output (Max)	15mA
