Panasonic

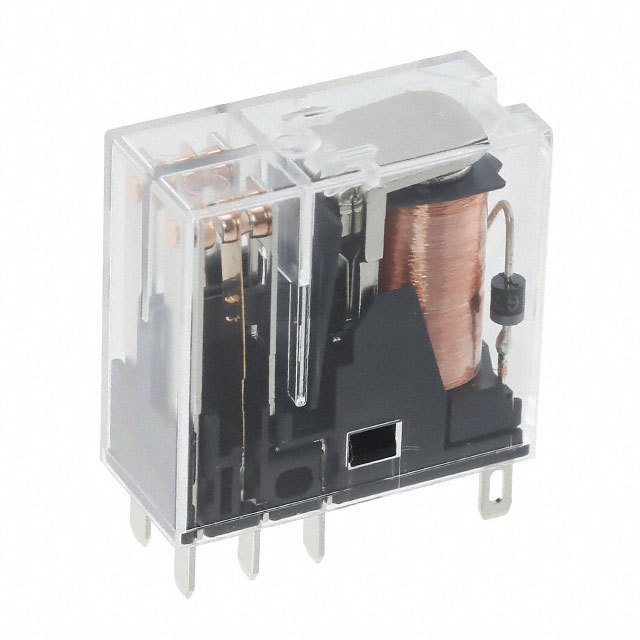

| Part Number | AHN22224N | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 5A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8168 pcs | Data sheet | AHN22224N.pdf |
| Turn On Voltage (Max) | 16.8 VDC | Turn Off Voltage (Min) | 2.4 VDC |
| Termination Style | Plug In | Switching Voltage | 250VAC, 30VDC - Max |
| Series | AHN | Release Time | 20ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | 255-5309 255-5309-5 255-5309-ND AHN22224N-ND |
Operating Temperature | -40°C ~ 70°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Diode |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 1.09 kOhms | Coil Power | 530 mW |
| Coil Current | 22.0mA |
