AHES3293

Panasonic

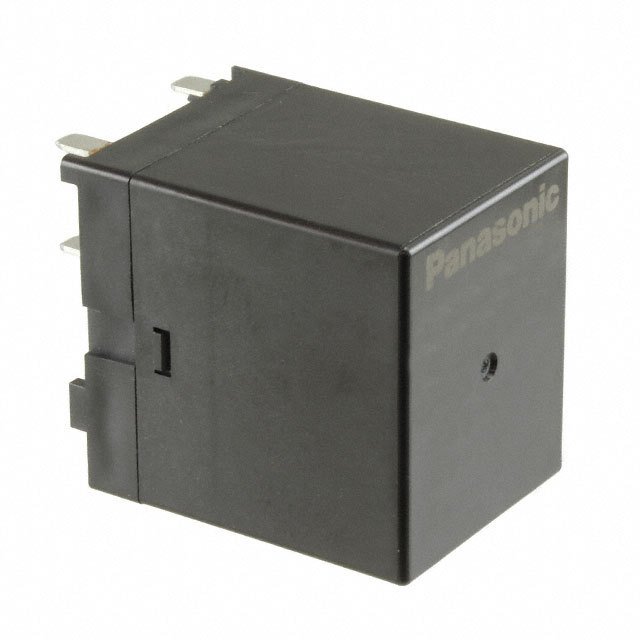

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AHES3293
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 35A 48V
Datasheets:	AHES3293.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4855 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4855 pcs

Reference Price (In US Dollars)

1 pcs: $7.442

10 pcs: $7.069

25 pcs: $6.697

50 pcs: $6.325

100 pcs: $5.953

250 pcs: $5.581

500 pcs: $5.209

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.442

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AHES3293

Part Number	AHES3293	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 35A 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4855 pcs	Data sheet	AHES3293.pdf
Turn On Voltage (Max)	36 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	277VAC - Nom
Series	HE-S	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-5240	Operating Temperature	-40°C ~ 55°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose Relay DPST-NO (2 Form A) 48VDC Coil Through Hole	Contact Rating (Current)	35A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	DPST-NO (2 Form A)
Coil Voltage	48VDC	Coil Type	Non Latching
Coil Resistance	1.22 kOhms	Coil Power	1.88 W
Coil Current	39.0mA
