AH1862-A

PanasonicPanasonic

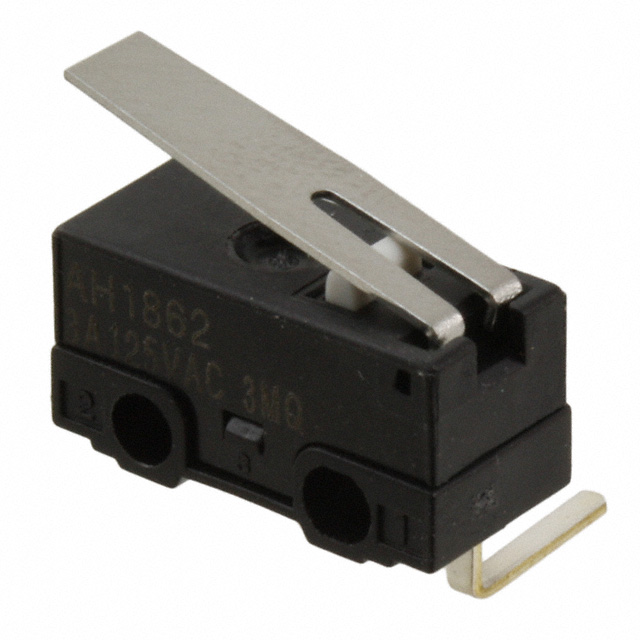

AH1862-A Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AH1862-A
Manufacturer/Brand: Panasonic
Product description SWITCH SNAP ACTION SPDT 3A 125V
Datasheets: AH1862-A.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4266 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 4266 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AH1862-A

Part Number AH1862-A Manufacturer Panasonic
Description SWITCH SNAP ACTION SPDT 3A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4266 pcs Data sheet AH1862-A.pdf
Voltage Rating - DC 30V Voltage Rating - AC 125V
Termination Style PC Pin Switch Function On-Mom
Series AH1 Release Force 5.099gf
Pretravel 0.083" (2.1mm) Packaging Tube
Overtravel 0.022" (0.55mm) Other Names 255-4102-5
AH1862-A-ND
AH1862A
Operating Temperature -25°C ~ 85°C Operating Position 0.268" (6.8mm)
Operating Force 50gf Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 500,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Features - Electrical Life 30,000 Cycles
Differential Travel 0.020" (0.5mm) Current Rating 3A (AC), 2A (DC)
Circuit SPDT Actuator Type Lever, Straight
