AGN26024

Panasonic

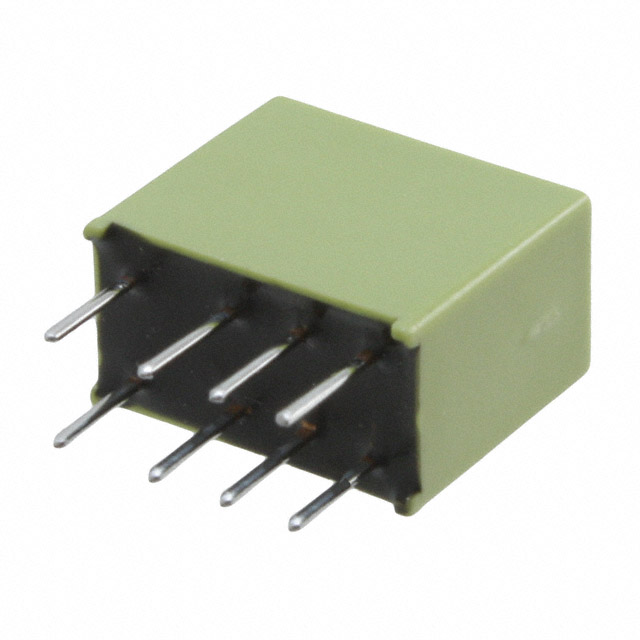

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AGN26024
Manufacturer/Brand:	Panasonic
Product description	RELAY TELECOM DPDT 1A 125V
Datasheets:	AGN26024.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12731 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12731 pcs

Reference Price (In US Dollars)

1 pcs: $2.409

10 pcs: $2.26

25 pcs: $2.008

50 pcs: $1.908

100 pcs: $1.808

250 pcs: $1.607

500 pcs: $1.506

1000 pcs: $1.406

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.409

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AGN26024

Part Number	AGN26024	Manufacturer	Panasonic
Description	RELAY TELECOM DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12731 pcs	Data sheet	AGN26024.pdf
Turn On Voltage (Max)	19.2 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	125VAC, 110VDC - Max
Series	AGN	Release Time	4ms
Relay Type	Telecom	Packaging	Tube
Other Names	255-2607	Operating Temperature	-40°C ~ 70°C
Operate Time	4ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	Telecom Relay DPDT (2 Form C) Through Hole	Contact Rating (Current)	1A
Contact Material	Silver Palladium (AgPd), Gold (Au)	Contact Form	DPDT (2 Form C)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	4.8 kOhms	Coil Power	120 mW
Coil Current	5.0mA
