ADW1209HLW

Panasonic

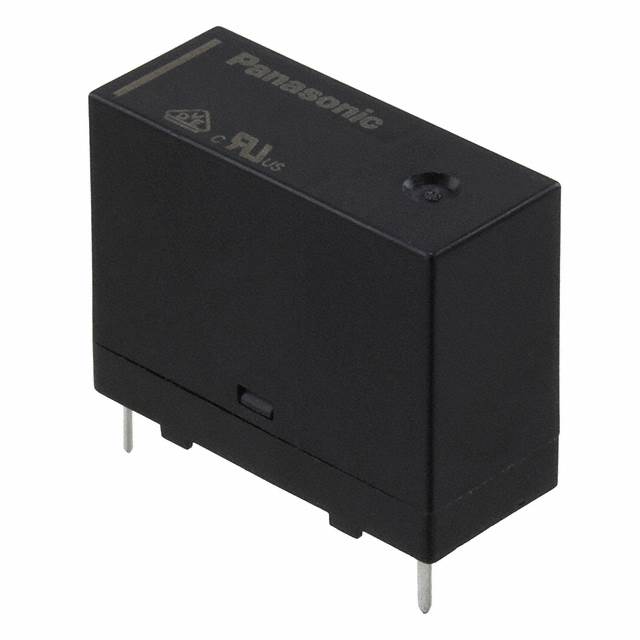

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADW1209HLW
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 16A 9V
Datasheets:	ADW1209HLW.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17308 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17308 pcs

Reference Price (In US Dollars)

1 pcs: $2.106

10 pcs: $1.975

25 pcs: $1.756

50 pcs: $1.668

100 pcs: $1.58

300 pcs: $1.405

500 pcs: $1.317

1000 pcs: $1.229

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.106

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADW1209HLW

Part Number	ADW1209HLW	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 16A 9V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17308 pcs	Data sheet	ADW1209HLW.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	277VAC - Max
Series	DW-H	Release Time	15ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-5339	Operating Temperature	-40°C ~ 85°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole	Contact Rating (Current)	16A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	9VDC	Coil Type	Latching, Dual Coil
Coil Resistance	203 Ohms	Coil Power	400 mW
Coil Current	44.4mA
