ADJH22124

Panasonic

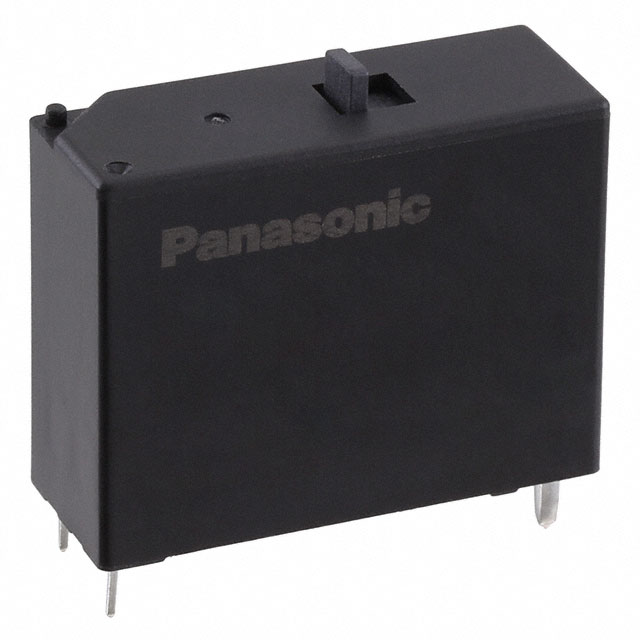

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADJH22124
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 50A 24V
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8181 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8181 pcs

Reference Price (In US Dollars)

1 pcs: $4.642

10 pcs: $4.125

25 pcs: $3.919

50 pcs: $3.713

100 pcs: $3.507

250 pcs: $3.197

500 pcs: $2.991

1000 pcs: $2.836

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.642

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADJH22124

Part Number	ADJH22124	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 50A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8181 pcs	Data sheet
Turn On Voltage (Max)	18 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	480VAC - Max
Series	ADJH	Release Time	20ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-5884 ADJH22124-ND	Operating Temperature	-40°C ~ 85°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Manual Switch Type
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole	Contact Rating (Current)	50A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	24VDC	Coil Type	Latching, Single Coil
Coil Resistance	576 Ohms	Coil Power	1 W
Coil Current	41.7mA
