ACW212

Panasonic

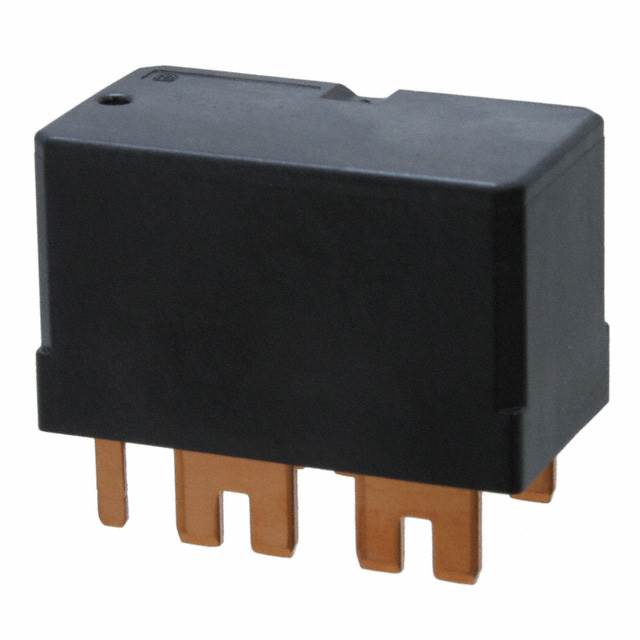

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACW212
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE DPST 45A 12V
Datasheets:	ACW212.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4925 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4925 pcs

Reference Price (In US Dollars)

1 pcs: $6.788

10 pcs: $6.033

40 pcs: $5.731

80 pcs: $5.429

120 pcs: $5.128

280 pcs: $4.675

520 pcs: $4.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.788

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACW212

Part Number	ACW212	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE DPST 45A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4925 pcs	Data sheet	ACW212.pdf
Turn On Voltage (Max)	6.2 VDC	Turn Off Voltage (Min)	0.5 VDC
Termination Style	Plug In	Switching Voltage	14VDC - Nom
Series	ACW	Release Time	20ms
Packaging	Tray	Other Names	255-3355 ACW212-ND
Operating Temperature	-40°C ~ 125°C	Operate Time	20ms
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Contact Rating (Current)	45A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	DPST-NO (2 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	103 Ohms	Coil Power	1.4 W
Coil Current	117mA
