HomeProductsRelaysAutomotive RelaysACV12212

ACV12212

PanasonicPanasonic

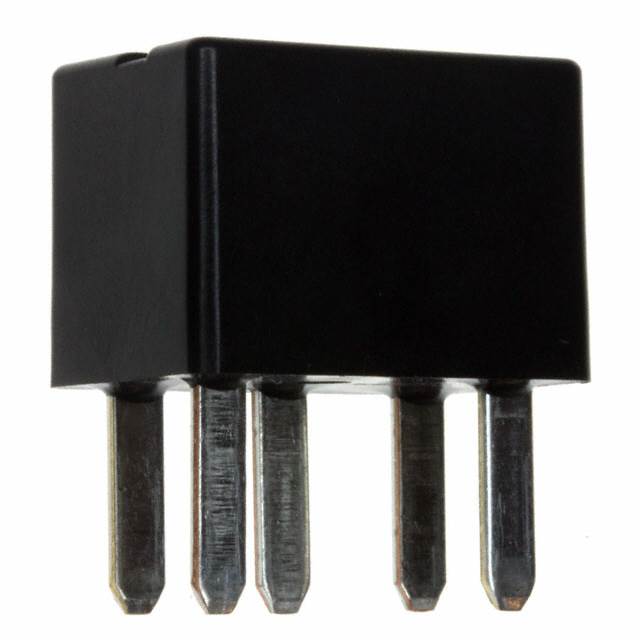

ACV12212 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ACV12212
Manufacturer/Brand: Panasonic
Product description RELAY AUTOMOTIVE SPDT 20A 12V
Datasheets: ACV12212.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4606 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 4606 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ACV12212

Part Number ACV12212 Manufacturer Panasonic
Description RELAY AUTOMOTIVE SPDT 20A 12V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4606 pcs Data sheet ACV12212.pdf
Turn On Voltage (Max) 7 VDC Turn Off Voltage (Min) 0.6 VDC
Termination Style Plug In Switching Voltage 14VDC - Nom
Series ACV Release Time 15ms
Packaging Tube Operating Temperature -40°C ~ 85°C
Operate Time 10ms Mounting Type Socketable
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Resistor Contact Rating (Current) 20A
Contact Material Silver Alloy, Cadmium Free Contact Form SPDT (1 Form C)
Coil Voltage 12VDC Coil Type Non Latching
Coil Resistance 142 Ohms Coil Power 1 W
Coil Current 84.0mA
