ACT212

Panasonic

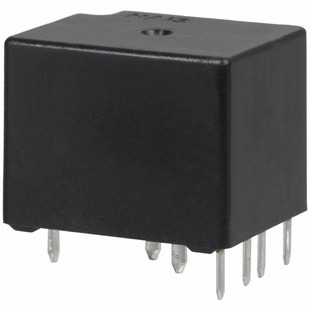

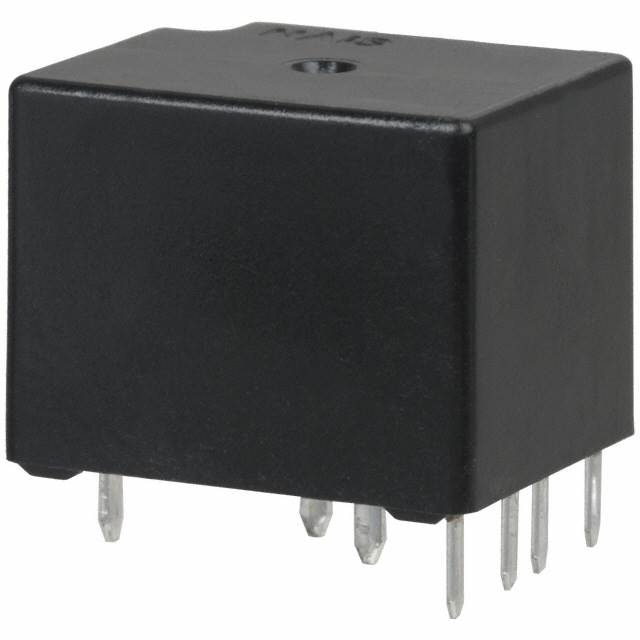

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACT212
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDTX2 20A 12V
Datasheets:	ACT212.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20579 pcs

Reference Price (In US Dollars)

1 pcs: $1.813

10 pcs: $1.699

30 pcs: $1.51

60 pcs: $1.434

120 pcs: $1.359

270 pcs: $1.208

510 pcs: $1.132

1020 pcs: $1.057

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.813

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACT212

Part Number	ACT212	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDTX2 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20579 pcs	Data sheet	ACT212.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	ACT	Release Time	10ms
Packaging	Tube	Other Names	255-1851 ACT212-ND
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Contact Rating (Current)	20A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C) x 2
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	180 Ohms	Coil Power	800 mW
Coil Current	66.7mA
