ABV1615619R

Panasonic

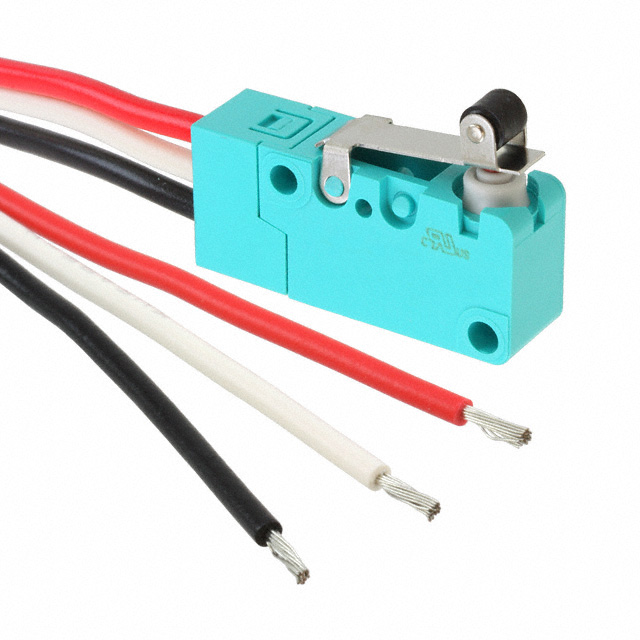

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABV1615619R
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 3A 250V
Datasheets:	ABV1615619R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10904 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10904 pcs

Reference Price (In US Dollars)

1 pcs: $3.172

10 pcs: $2.536

25 pcs: $2.409

50 pcs: $2.346

100 pcs: $2.029

250 pcs: $1.902

500 pcs: $1.807

1000 pcs: $1.743

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.172

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABV1615619R

Part Number	ABV1615619R	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 3A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10904 pcs	Data sheet	ABV1615619R.pdf
Voltage Rating - AC	250V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	ABV
Release Force	60gf	Pretravel	0.063" (1.6mm)
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	255-2392	Operating Temperature	-40°C ~ 85°C
Operating Position	0.815" (20.7mm)	Operating Force	320gf
Mounting Type	Chassis Mount	Mechanical Life	5,000,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	3A (AC)	Circuit	SPDT
Actuator Type	Lever, Roller
