ABV1215619R

Panasonic

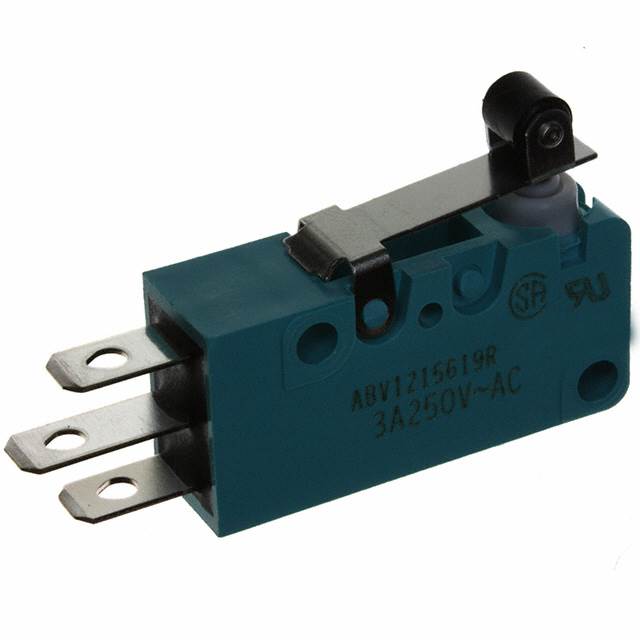

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABV1215619R
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 3A 250V
Datasheets:	ABV1215619R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6357 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6357 pcs

Reference Price (In US Dollars)

1 pcs: $4.62

10 pcs: $3.583

25 pcs: $3.394

50 pcs: $3.206

100 pcs: $2.923

250 pcs: $2.734

500 pcs: $2.64

1000 pcs: $2.546

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.62

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABV1215619R

Part Number	ABV1215619R	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 3A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6357 pcs	Data sheet	ABV1215619R.pdf
Voltage Rating - AC	250V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	ABV
Release Force	60gf	Pretravel	0.063" (1.6mm)
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	255-2391	Operating Temperature	-40°C ~ 85°C
Operating Position	0.815" (20.7mm)	Operating Force	320gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	5,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	3A (AC)
Circuit	SPDT	Actuator Type	Lever, Roller
