ABS1116549

Panasonic

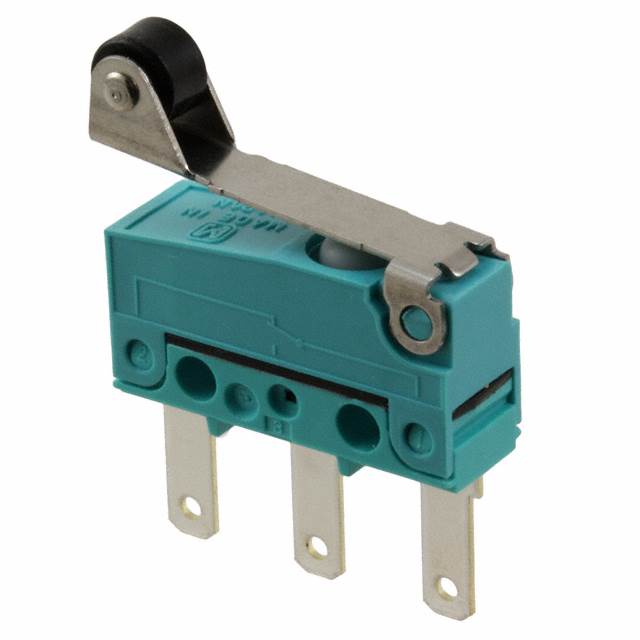

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABS1116549
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 100MA
Datasheets:	ABS1116549.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 27367 pcs

Reference Price (In US Dollars)

1 pcs: $1.351

10 pcs: $1.248

25 pcs: $1.17

50 pcs: $1.144

100 pcs: $0.91

250 pcs: $0.858

500 pcs: $0.806

1000 pcs: $0.754

5000 pcs: $0.702

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.351

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABS1116549

Part Number	ABS1116549	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 100MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27367 pcs	Data sheet	ABS1116549.pdf
Voltage Rating - DC	30V	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	ABS
Release Force	4.079gf	Pretravel	0.100" (2.5mm)
Packaging	Bulk	Overtravel	0.032" (0.81mm)
Other Names	255-3820 ABS1116549-ND Q6661024	Operating Temperature	-40°C ~ 85°C
Operating Position	0.571" (14.5mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	5,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	100mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
