2SK326800L

Panasonic

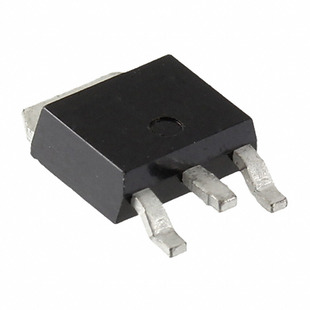

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SK326800L
Manufacturer/Brand:	Panasonic
Product description	MOSFET N-CH 100V 15A UG-2
Datasheets:	2SK326800L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31234 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31234 pcs

Reference Price (In US Dollars)

1 pcs: $1.228

10 pcs: $1.098

100 pcs: $0.90

500 pcs: $0.729

1000 pcs: $0.615

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SK326800L

Part Number	2SK326800L	Manufacturer	Panasonic
Description	MOSFET N-CH 100V 15A UG-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31234 pcs	Data sheet	2SK326800L.pdf
Vgs(th) (Max) @ Id	4V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	U-DL
Series	-	Rds On (Max) @ Id, Vgs	100 mOhm @ 12A, 10V
Power Dissipation (Max)	1W (Ta), 20W (Tc)	Packaging	Cut Tape (CT)
Package / Case	TO-252-4, DPak (3 Leads + Tab)	Other Names	2SK326800LCT
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	960pF @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	100V	Detailed Description	N-Channel 100V 15A (Tc) 1W (Ta), 20W (Tc) Surface Mount U-DL
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
