Panasonic

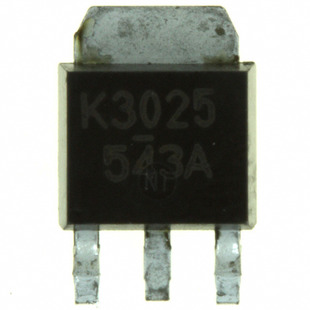

| Part Number | 2SK302500L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET N-CH 60V 30A UG-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22765 pcs | Data sheet | 2SK302500L.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | U-DL |
| Series | - | Rds On (Max) @ Id, Vgs | 40 mOhm @ 15A, 10V |
| Power Dissipation (Max) | 1W (Ta), 25W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | Other Names | 2SK302500LCT 2SK3025U0LCT 2SK3025U0LCT-ND |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 30A (Tc) 1W (Ta), 25W (Tc) Surface Mount U-DL |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
