2SD2177A0A

Panasonic

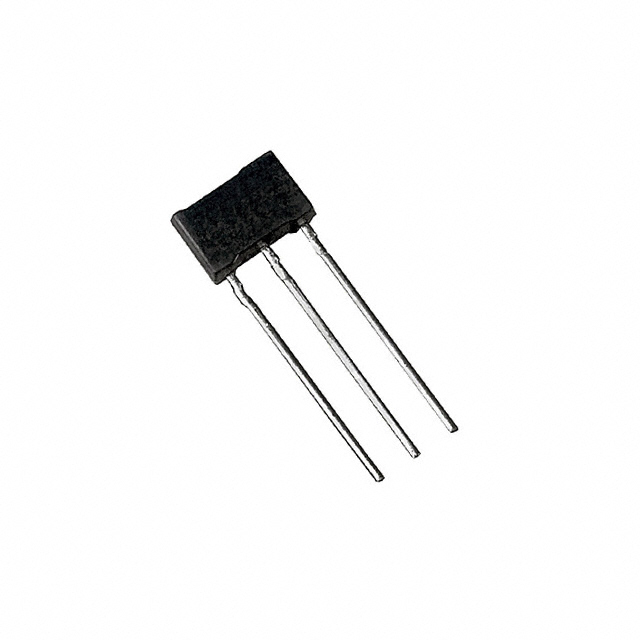

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SD2177A0A
Manufacturer/Brand:	Panasonic
Product description	TRANS NPN 60V 2A MT-2
Datasheets:	2SD2177A0A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5042 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5042 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SD2177A0A

Part Number	2SD2177A0A	Manufacturer	Panasonic
Description	TRANS NPN 60V 2A MT-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5042 pcs	Data sheet	2SD2177A0A.pdf
Voltage - Collector Emitter Breakdown (Max)	60V	Vce Saturation (Max) @ Ib, Ic	300mV @ 50mA, 1A
Transistor Type	NPN	Supplier Device Package	MT-2-A1
Series	-	Power - Max	1W
Packaging	Tape & Box (TB)	Package / Case	3-SIP
Other Names	2SD2177A-(TA) 2SD2177A-TA 2SD2177A0ATB 2SD2177ATB 2SD2177ATB-ND	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	110MHz
Detailed Description	Bipolar (BJT) Transistor NPN 60V 2A 110MHz 1W Through Hole MT-2-A1	DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 200mA, 2V
Current - Collector Cutoff (Max)	100nA (ICBO)	Current - Collector (Ic) (Max)	2A
Base Part Number	2SD2177
