2SD20640S

Panasonic

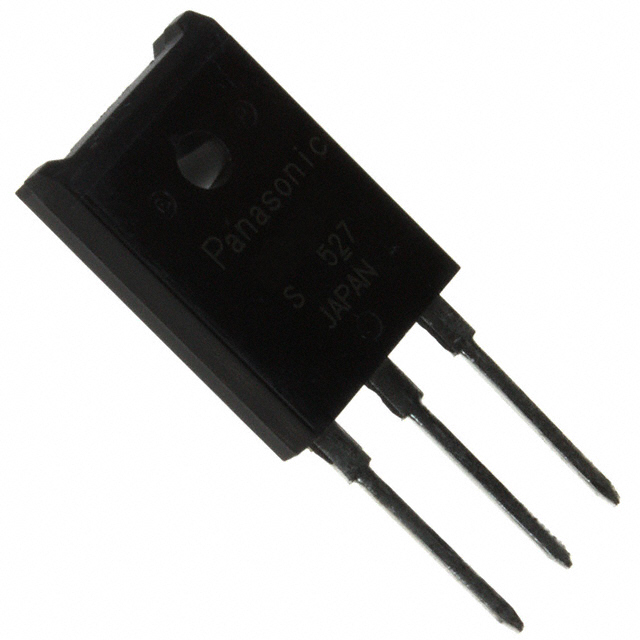

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SD20640S
Manufacturer/Brand:	Panasonic
Product description	TRANS NPN 120V 6A TOP-3F
Datasheets:	2SD20640S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19179 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19179 pcs

Reference Price (In US Dollars)

1 pcs: $1.741

10 pcs: $1.555

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SD20640S

Part Number	2SD20640S	Manufacturer	Panasonic
Description	TRANS NPN 120V 6A TOP-3F	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19179 pcs	Data sheet	2SD20640S.pdf
Voltage - Collector Emitter Breakdown (Max)	120V	Vce Saturation (Max) @ Ib, Ic	2V @ 400mA, 4A
Transistor Type	NPN	Supplier Device Package	TOP-3F-A1
Series	-	Power - Max	3W
Packaging	Bulk	Package / Case	TOP-3F
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	20MHz	Detailed Description	Bipolar (BJT) Transistor NPN 120V 6A 20MHz 3W Through Hole TOP-3F-A1
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V	Current - Collector Cutoff (Max)	50µA (ICBO)
Current - Collector (Ic) (Max)	6A
