2SC1567AR

Panasonic

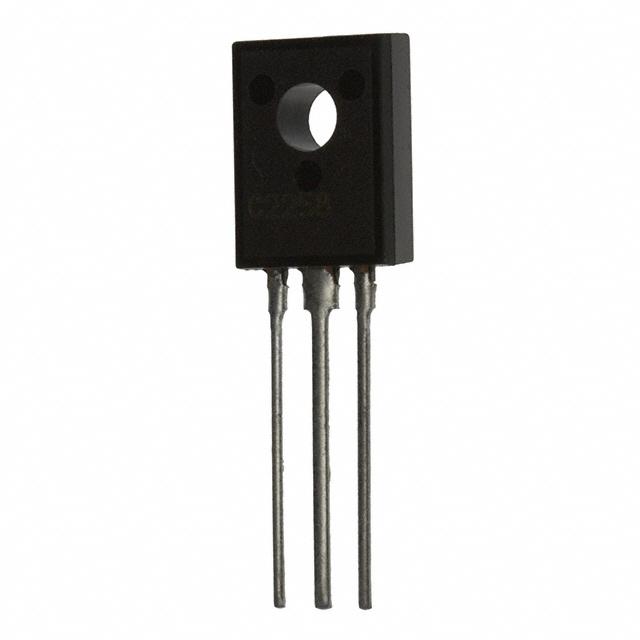

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SC1567AR
Manufacturer/Brand:	Panasonic
Product description	TRANS NPN 120V 0.5A TO-126
Datasheets:	2SC1567AR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6493 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6493 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SC1567AR

Part Number	2SC1567AR	Manufacturer	Panasonic
Description	TRANS NPN 120V 0.5A TO-126	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6493 pcs	Data sheet	2SC1567AR.pdf
Voltage - Collector Emitter Breakdown (Max)	120V	Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 500mA
Transistor Type	NPN	Supplier Device Package	TO-126B-A1
Series	-	Power - Max	1.2W
Packaging	Bulk	Package / Case	TO-225AA, TO-126-3
Other Names	2SC1567A 2SC1567A-ND	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	120MHz
Detailed Description	Bipolar (BJT) Transistor NPN 120V 500mA 120MHz 1.2W Through Hole TO-126B-A1	DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 150mA, 10V
Current - Collector Cutoff (Max)	-	Current - Collector (Ic) (Max)	500mA
