16SVPF560M

Panasonic

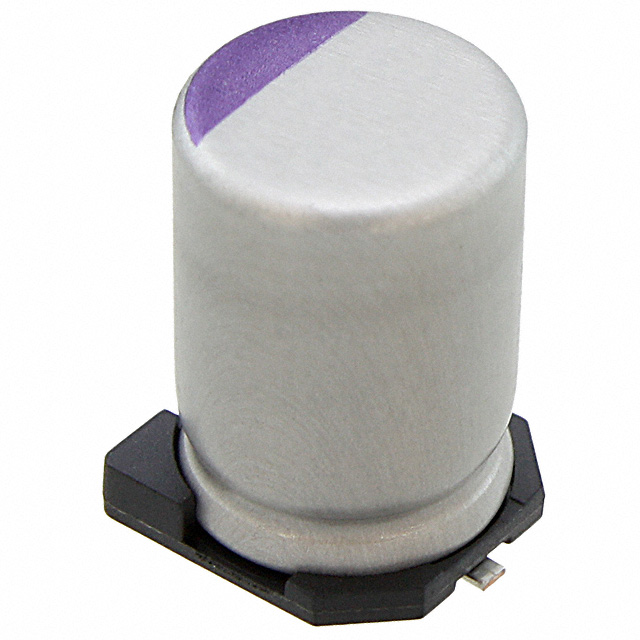

Image may be representation. See specifications for product details.

Product Overview

Part Number:	16SVPF560M
Manufacturer/Brand:	Panasonic
Product description	CAP ALUM POLY 560UF 20% 16V SMD
Datasheets:	1.16SVPF560M.pdf 2.16SVPF560M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	117326 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 117326 pcs

Reference Price (In US Dollars)

400 pcs: $0.318

800 pcs: $0.255

1200 pcs: $0.239

2000 pcs: $0.223

4000 pcs: $0.215

10000 pcs: $0.207

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.318

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 16SVPF560M

Part Number	16SVPF560M	Manufacturer	Panasonic
Description	CAP ALUM POLY 560UF 20% 16V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	117326 pcs	Data sheet	1.16SVPF560M.pdf 2.16SVPF560M.pdf
Voltage - Rated	16V	Type	Polymer
Tolerance	±20%	Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Size / Dimension	0.315" Dia (8.00mm)	Series	OS-CON™, SVPF
Ripple Current @ Low Frequency	247.5mA @ 120Hz	Ripple Current @ High Frequency	4.95A @ 100kHz
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Radial, Can - SMD	Other Names	P16481TR
Operating Temperature	-55°C ~ 105°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lifetime @ Temp.	5000 Hrs @ 105°C	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.472" (12.00mm)
ESR (Equivalent Series Resistance)	14 mOhm	Detailed Description	560µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 14 mOhm 5000 Hrs @ 105°C
Capacitance	560µF	Applications	General Purpose
