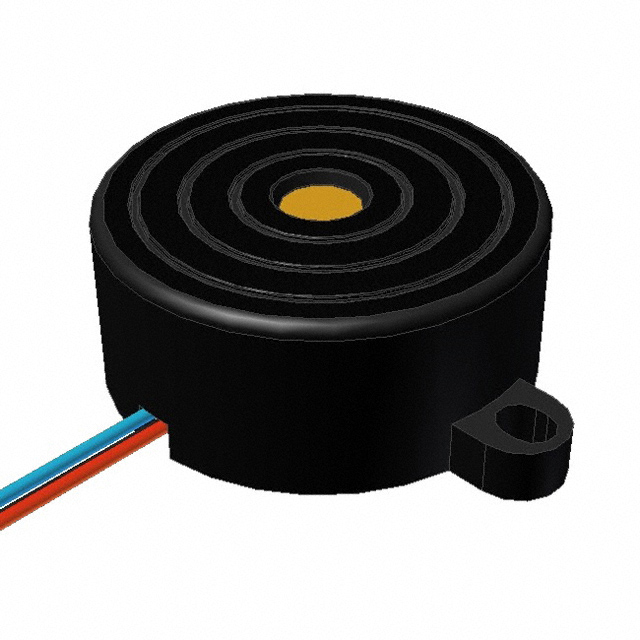

PUI Audio, Inc.
| Part Number | AT-3237-TF-LW140-R | Manufacturer | PUI Audio, Inc. |
|---|---|---|---|
| Description | AUDIO PIEZO XDCR 3-28V CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35806 pcs | Data sheet | AT-3237-TF-LW140-R.pdf |
| Voltage Range | 3 ~ 28V | Voltage - Rated | 12V |
| Termination | Wire Leads | Technology | Piezo (with Feedback) |
| Sound Pressure Level | 98dB @ 12V, 10cm | Size / Dimension | 1.260" Dia (32.00mm) |
| Series | AT | RoHS Status | Bulk |
| Ratings | - | Port Location | Top |
| Other Names | 668-1320 AT-3237-TF-LW140-R-ND AT3237TFLW140R |
Operating Temperature | -30°C ~ 85°C |
| Operating Mode | Single Tone | Mounting Type | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer Part Number | AT-3237-TF-LW140-R | Input Type | Peak-Peak Signal |
| Height - Seated (Max) | 0.551" (14.00mm) | Frequency | 3.7kHz |
| Expanded Description | Peak-Peak Signal Buzzer Single Tone 3.7kHz Piezo (with Feedback) 3 ~ 28V 98dB @ 12V, 10cm | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Description | AUDIO PIEZO XDCR 3-28V CHASSIS |
| Current - Supply | 7mA | Approvals | - |
